MyGrid 10K
Product Information
| Output Continuous Power | 10,000W |
|---|---|
| Output Peak Power | 20,000W |
| Output Voltage | 120V/240V Split Phase or 120V/208V 2 of 3 Phases |
| Output Frequency | 60Hz |
| Output Power Form | Pure Sine Wave |
| Auto Switching | <20ms |
| Capacity | 51.2V 205Ah (10496Wh) |
| Cell Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cycle life | >6000 Cycles |
| 120Vac Charger | 1000W |
| 208Vac or 240Vac Charger | 4500W |
| Wind Charger | 350W |
| Solar Charger | 12,000W 120Vdc-550DVdc |
| Solar Charge Mode | MPPT |
| Output Ports | 4x NEMA 5-20R Outlet 1x NEMA TT-30R Outlet 1x NEMA L14-30R Outlet 1x NEMA 14-50R Outlet |
| Input Ports | 2x Solar Input Ports 1x Wind Input Port 1x 120Vac Input Port 1x 208Vac or 240Vac Input Port |
| Optimal Operating Temperature | 68 – 86°F (20 – 30°C) |
| Storage Temperature | 14 – 113°F (-10 – 45°C) |
| Battery Charging Temperature | 32 – 113°F (0 – 45°C) |
| Battery Discharging Temperature | 14 – 113°F (-10 – 45°C) |
| Warranty | 5 Years Limited Warranty |

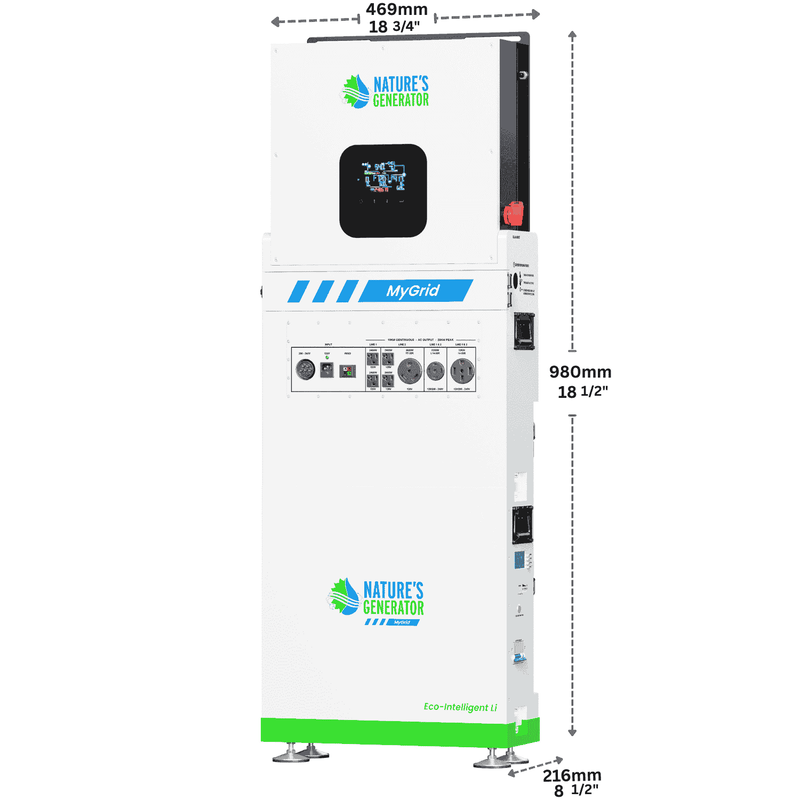

| Generator Dimensions | 21.8 x 8.5 x 38.5 inches (555.4 x 216 x 980 mm) not counting mounting bar |
| Generator Weight | 152 lbs (69 kg) |
| Battery Weight: | 213 lbs (96.6 kg) |
Get Your Estimated Runtime
Input power cannot exceed 10,000W. Runtime shown below is based on the selected option.
Input Your Device Wattage
Runs for:
00hrs
Note: Runtime shown is for reference only. Actual results may vary.
Manuals & Downloads
Certifications
Support Videos
The Tech Vault
Can the My Grid 10k Charge with Solar and 240V AC at the Same Time?
What Does the APL Indicator Flashing on the MyGrid 10k LCD Screen Mean?
No manuals match your search.
FAQ's
No. The Nature’s Generator MyGrid 10K is equipped with an intelligent controller that prevents any backfeeding of electricity to the grid.

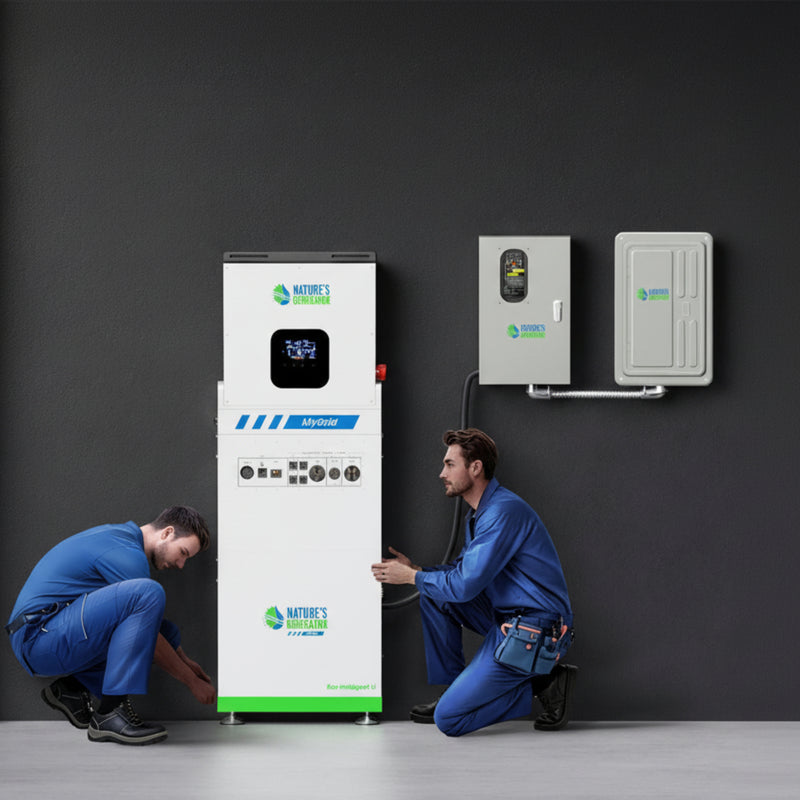

Very quick. The Nature’s Generator MyGrid 10K is a plug-and-play system, making it quick and easy to set up.
The Nature’s Generator MyGrid 10K can be recharged by using a standard 120V outlet, or 208/240 NEMA 14-50R outlet, or solar panels, or a wind turbine. Free energy from solar panels or wind turbine has higher priority over the 208/240 NEMA 14-50R outlet which is typically from the grid.
Not necessarily. Unlike the other options in the market, the Nature’s Generator MyGrid 10K can be recharged using a standard 120V outlet. You do not need to upgrade the home electrical panel before using it.
