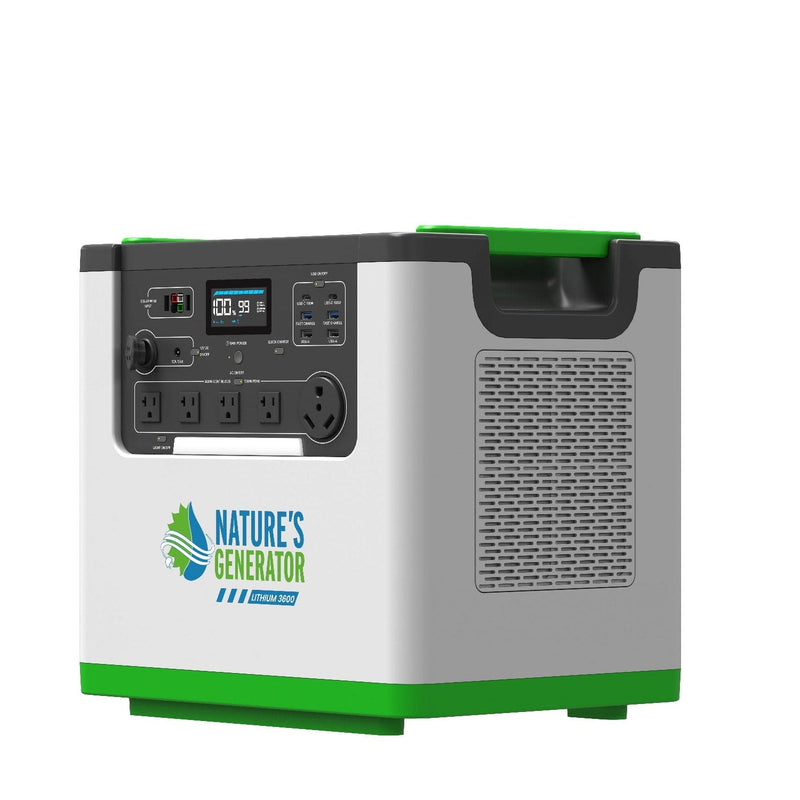

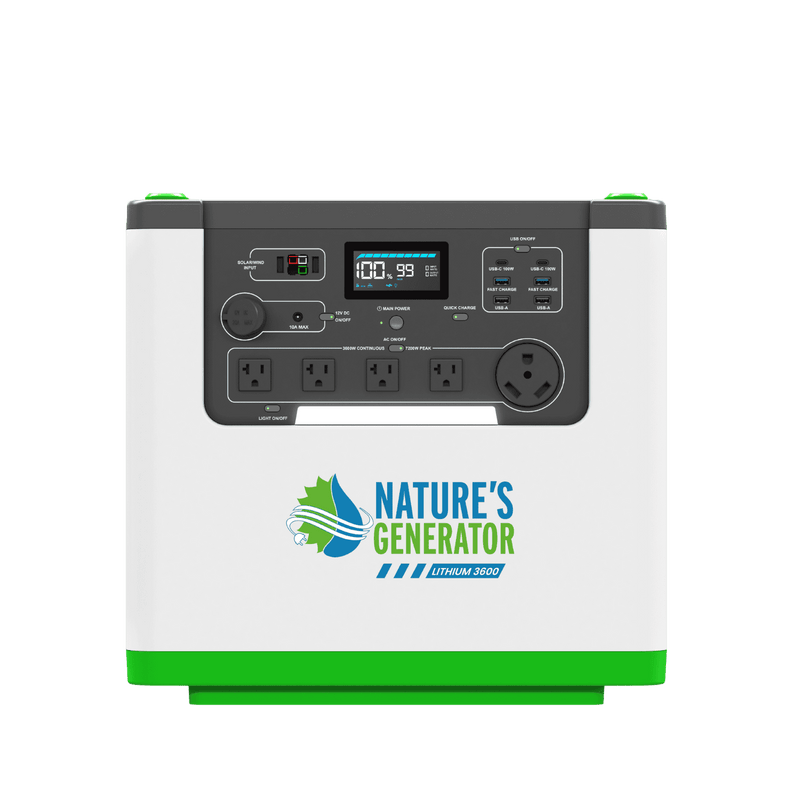

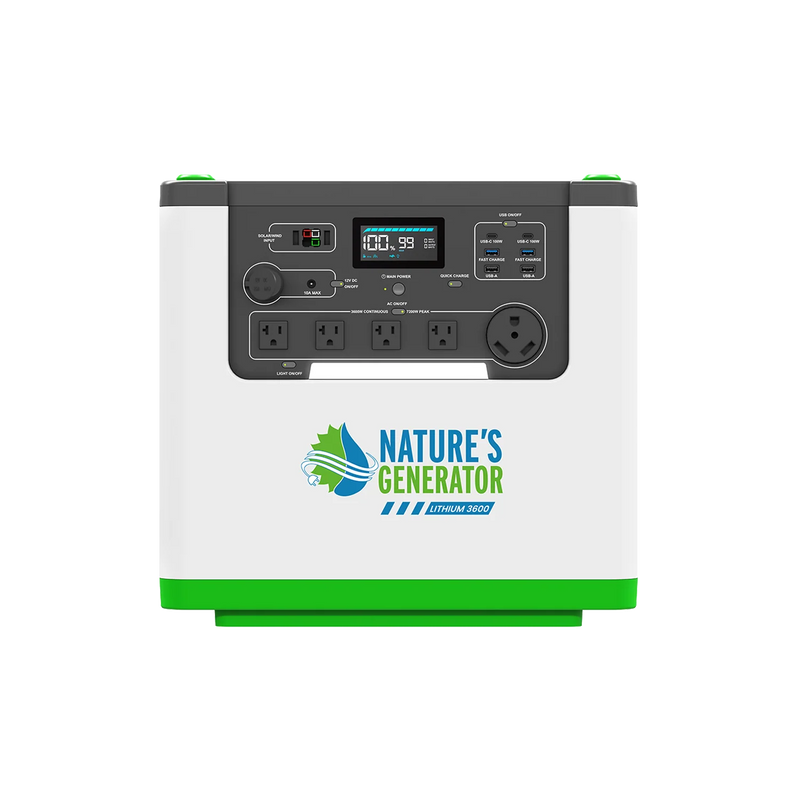

Lithium 3600

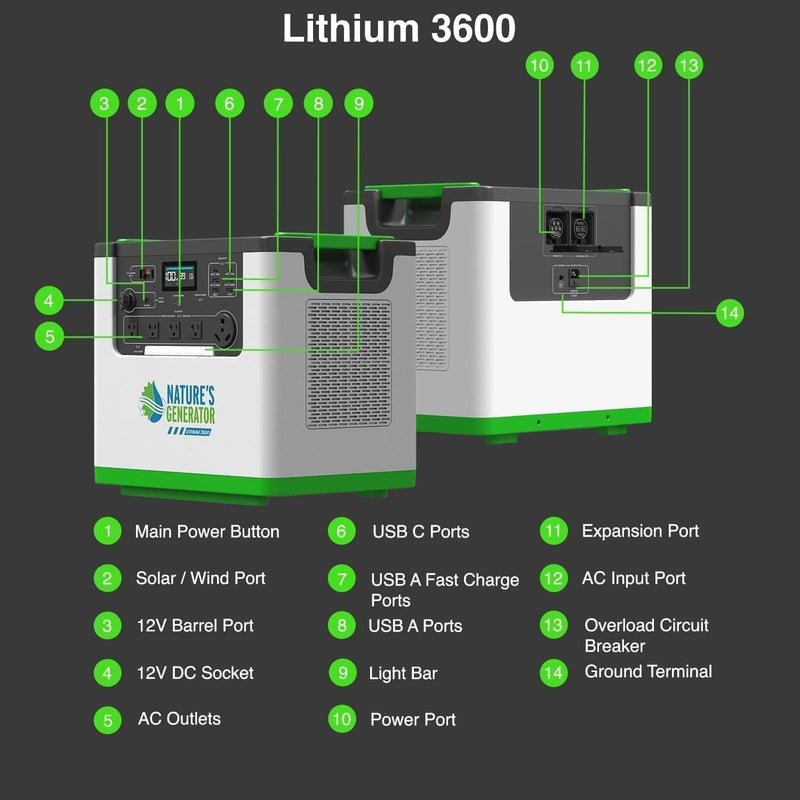

Product Information
| Output Continuous Power | 3600W |
|---|---|
| Output Peak Power | 7200W |
| Output Voltage | 120V Single Phase |
| Output Frequency | 60Hz |
| Waveform | Pure Sine Wave |
| Capacity | 51.2V 60Ah (3072Wh) |
| Cell Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Self-discharge | Recommend to recharge every 6 months |
| Life Cycles | > 3000 cycles |
| Solar Charger | 2400W |
| Wind Charger | 150W (shared port) |
| AC Charger | 600W, 1800W, 3000W |
| Charge mode | MPPT |

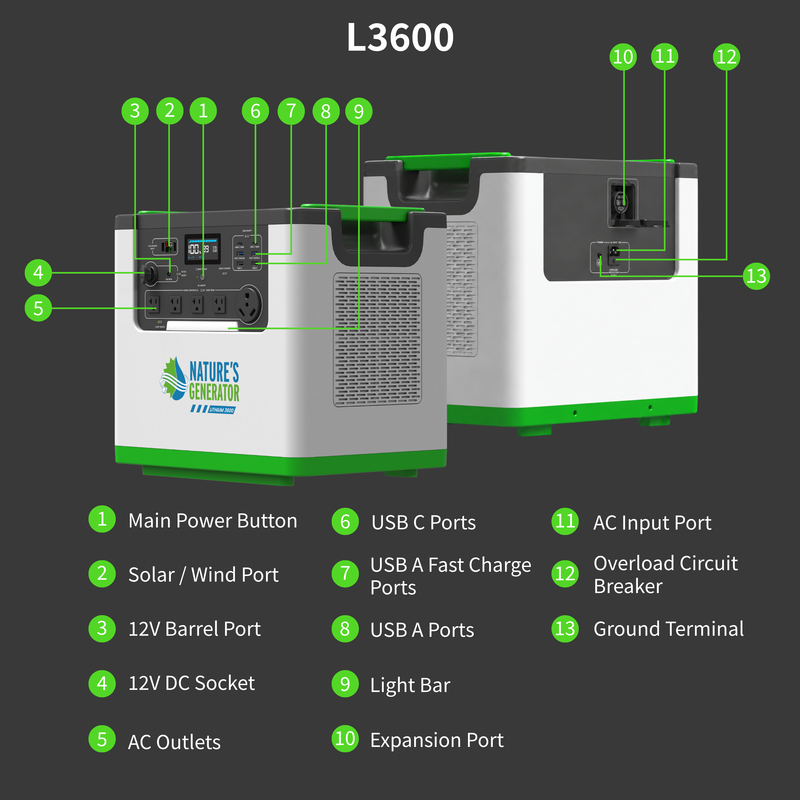

| USB-A Ports | 5V 2.4A 12W per port |
| USB-A Fast Charge Ports | 20V 3A 60W per port |
| USB-C Ports | 20V 5A 100W per port |
| 12V DC Port | 12V 10A 120W |

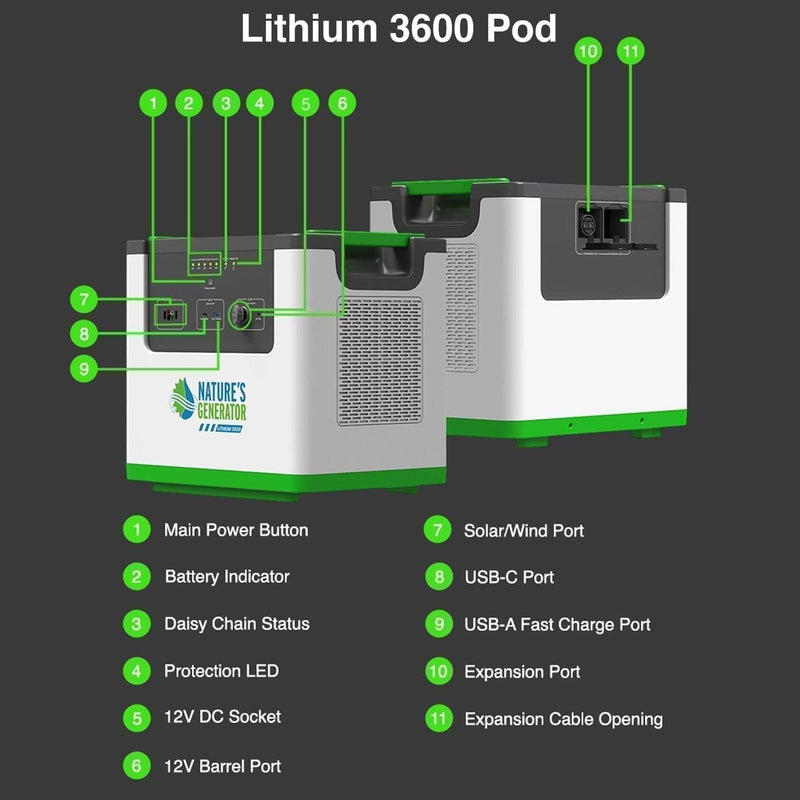

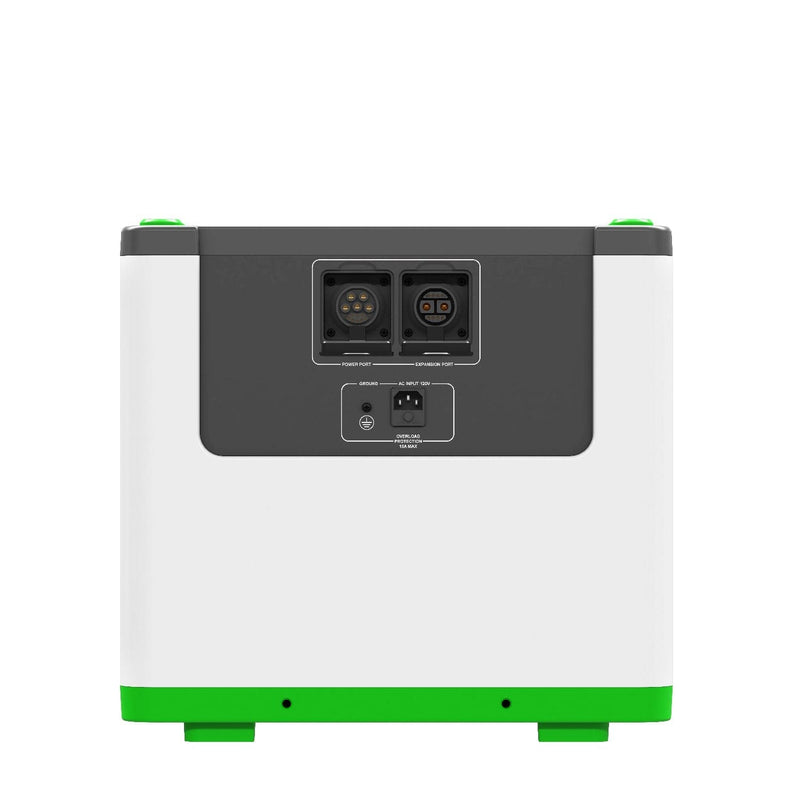

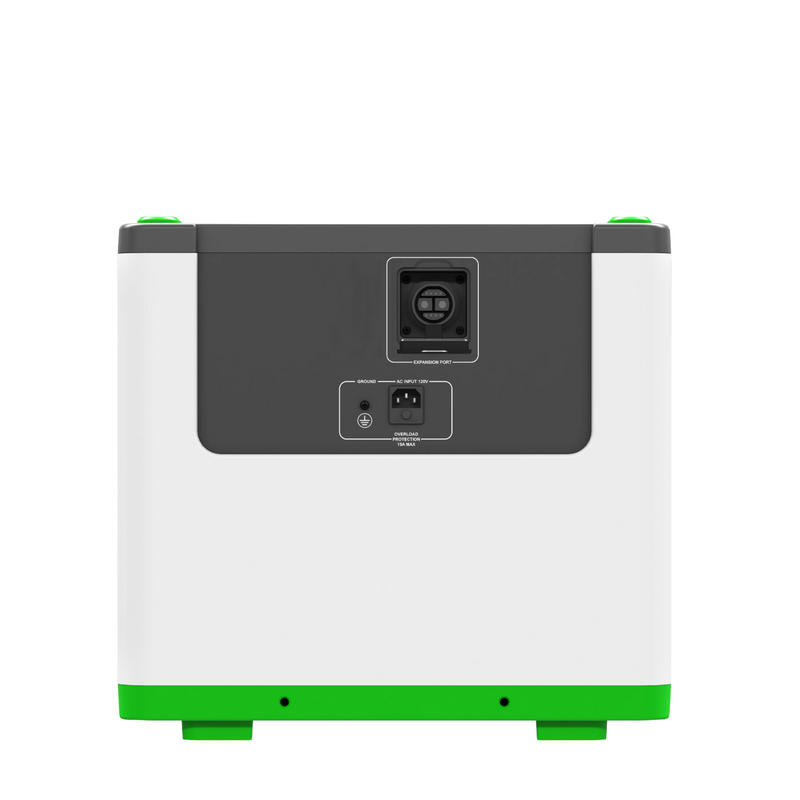

| Expansion Port | Built-in |
| Weight | 97 lbs (44 kg) |
| Operating temperature | 68 – 86°F (20 – 30°C) |
| Storage Temperature | 14 – 113°F (-10 – 45°C) |
| Discharging Temperature | 14 – 113°F (-10 – 45°C) |

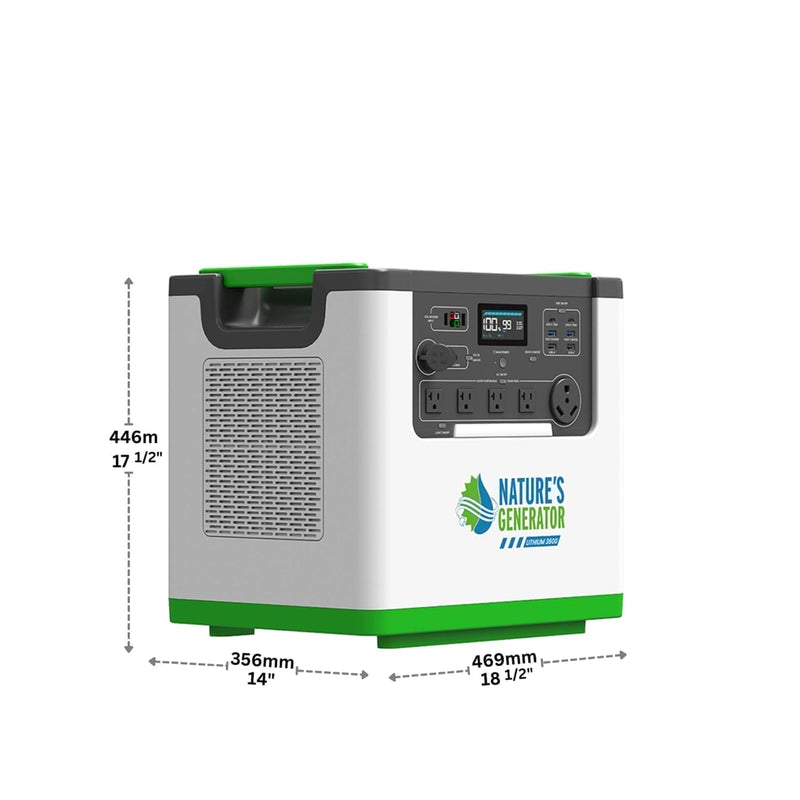

| Dimensions | 18.5 x 14.0 x 17.6 inches (469*356*446mm) |
Get Your Estimated Runtime
Input power cannot exceed 10,000W. Runtime shown below is based on the selected option.
Input Your Device Wattage
Runs for:
00hrs
Note: Runtime shown is for reference only. Actual results may vary.
Manuals & Downloads
Support Videos
The Tech Vault
No manuals match your search.
FAQ's
The Lithium 3600 uses a Lithium Iron Phosphate (LiFePO₄) battery with a capacity of 3072 Wh (51.2 V, 60 Ah).
The unit delivers 3600 W continuous output, and can handle up to 7200 W peak for short bursts.

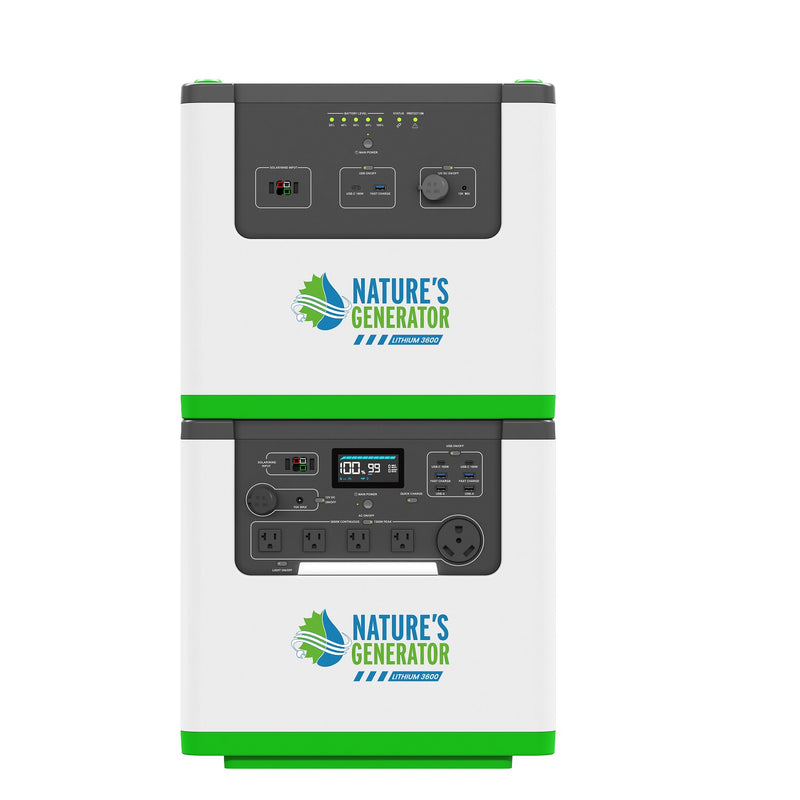

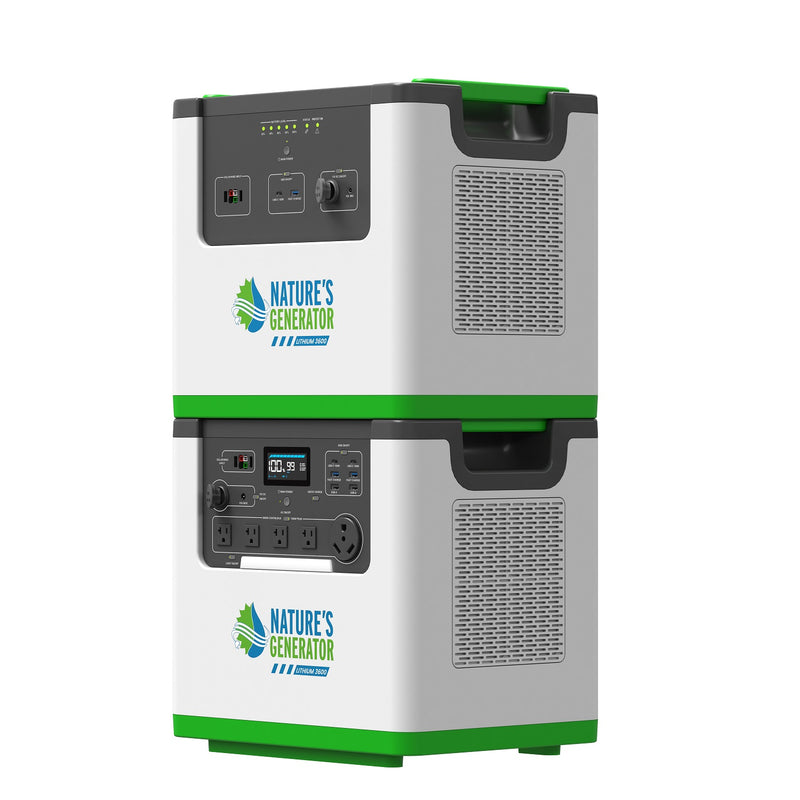

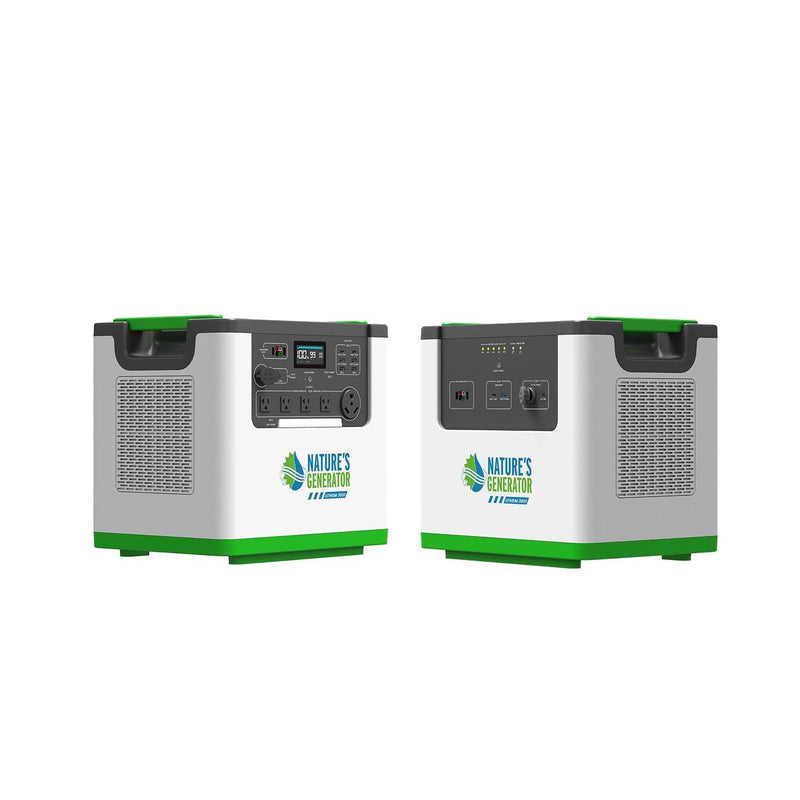

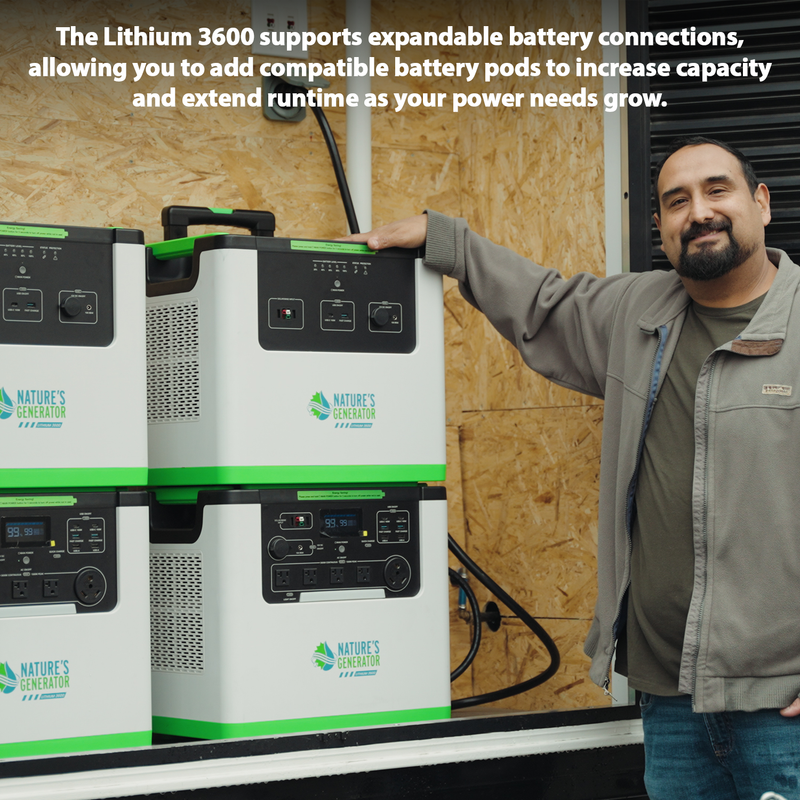

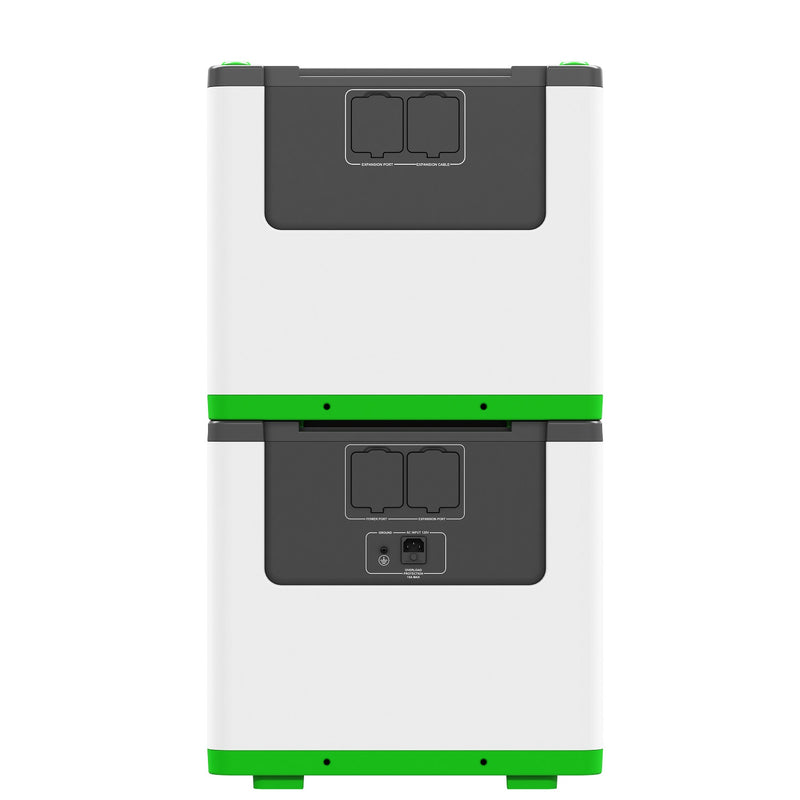

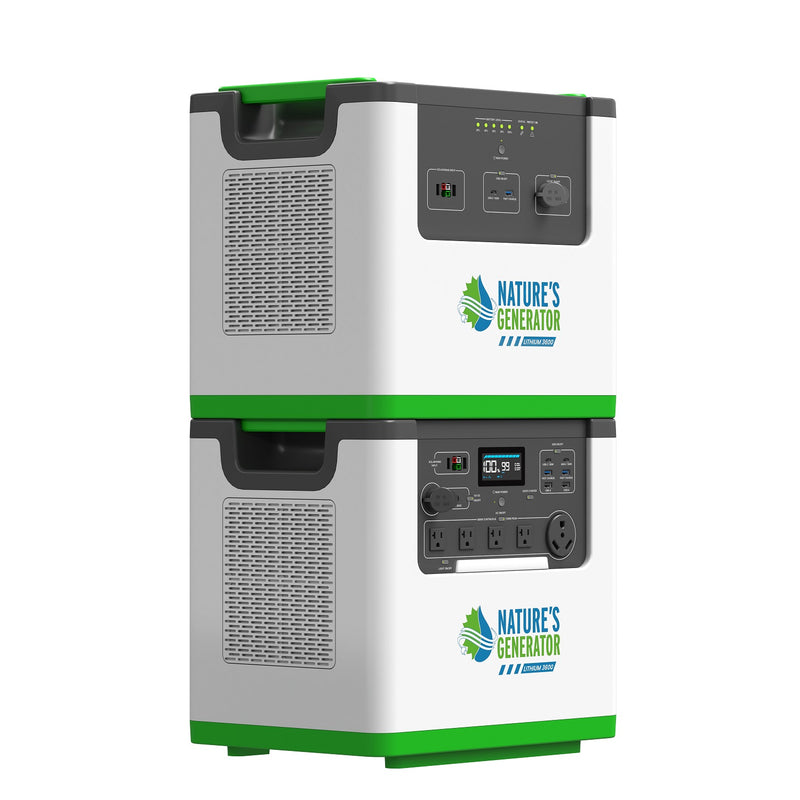

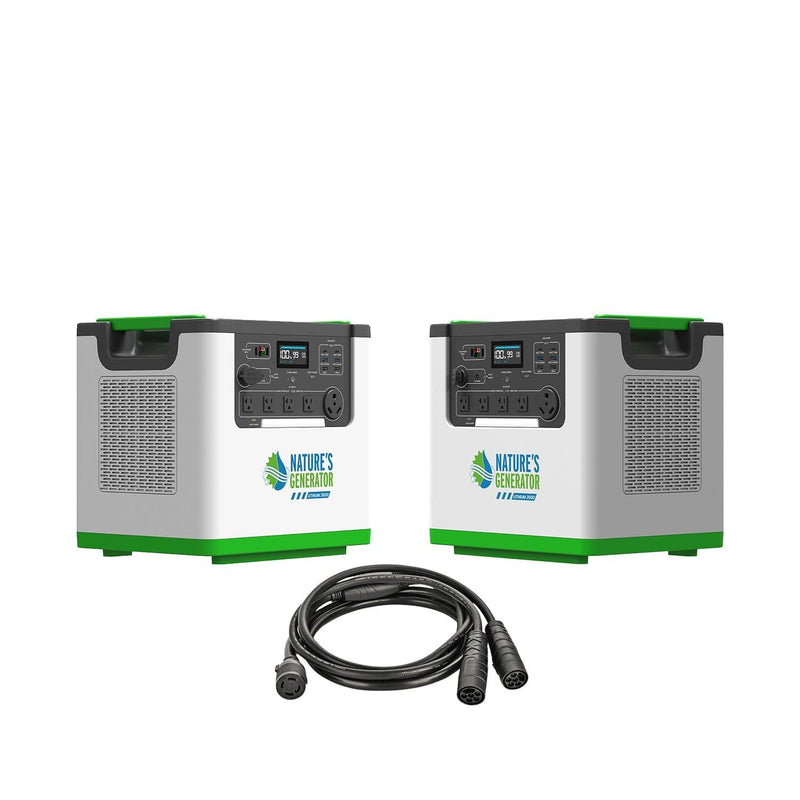

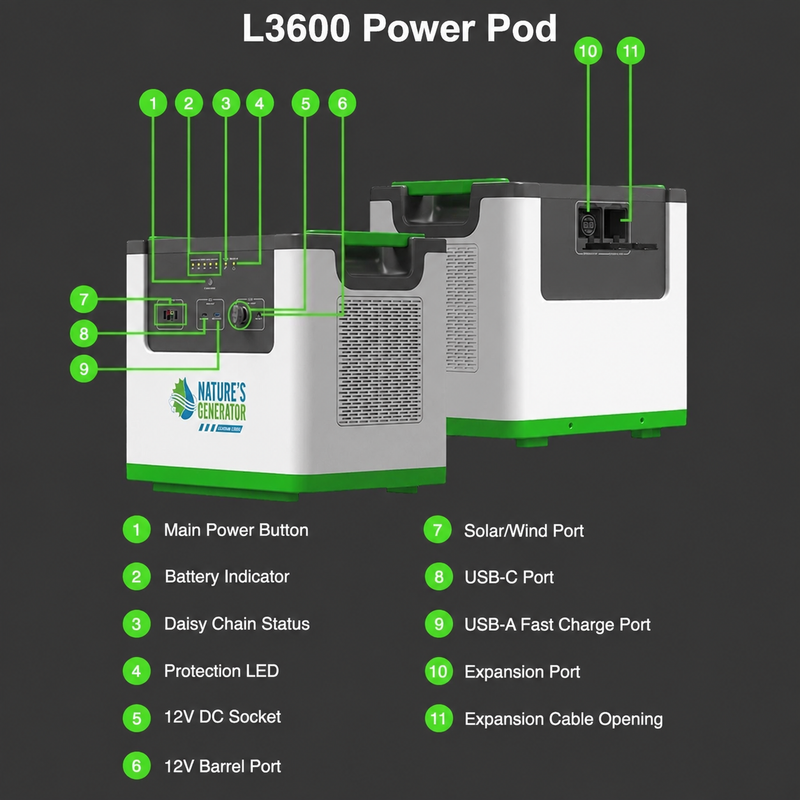

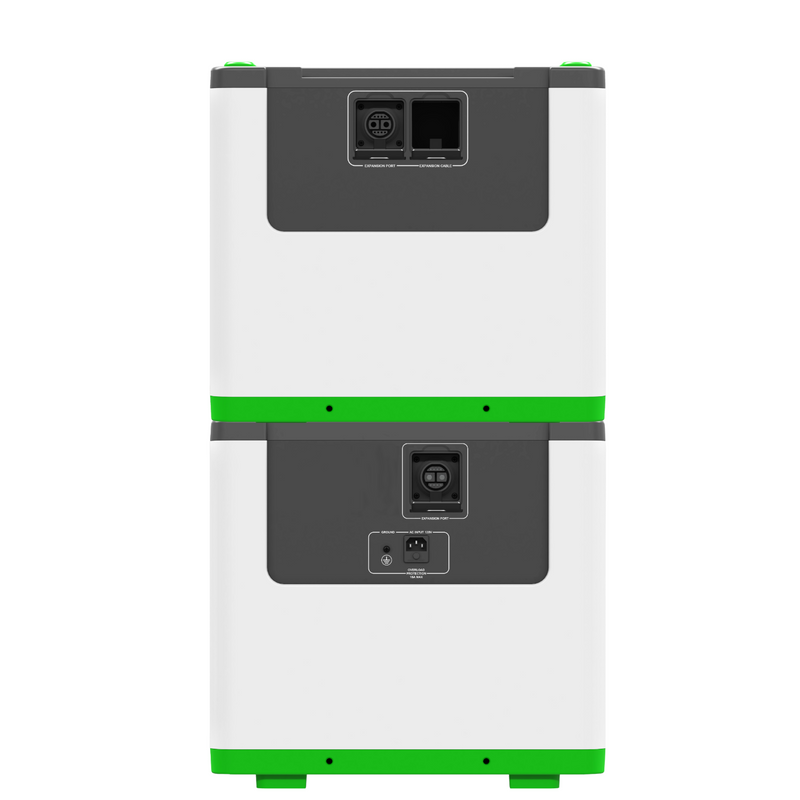

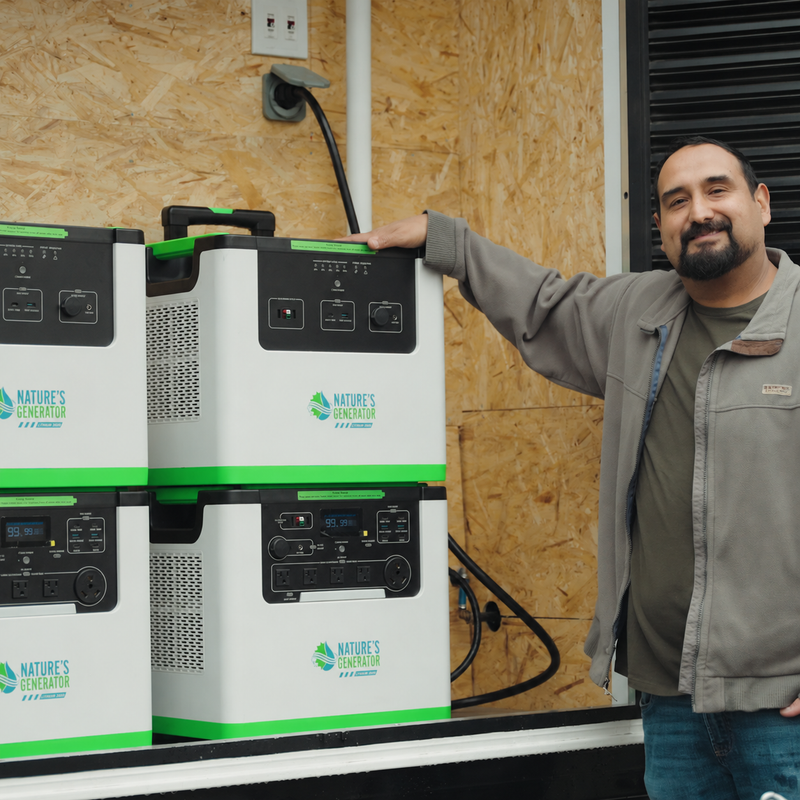

Yes, you can add an additional Lithium 3600 unit (for up to 7200 W / 240 V output) or attach extra battery modules (Power Pods) and solar panel input to increase total capacity and runtime.
It supports AC charging, solar charging, and wind charging (via shared port), using an MPPT charge controller for efficient power management.
It’s suitable for a variety of loads from small devices (phones, laptops, lights) to larger appliances (fridges, tools), thanks to its 3600 W continuous capacity. Runtime depends heavily on the device’s power draw; lighter loads will run for many hours, heavier loads will shorten the runtime.
