410 Watt Monocrystalline Solar Panel (4 Pack)
Product Information
| Maximum Power (Pmax) | 410W |
|---|---|
| Maximum Power Voltage (Vmp) | 31.35 |
| Maximum Power Current (Imp) | 13.08 |
| Open-circuit Voltage (Voc) | 37.12 |
| Short-circuit Current (Isc) | 13.96 |
| Module Efficiency STC (%) | 20.97% |

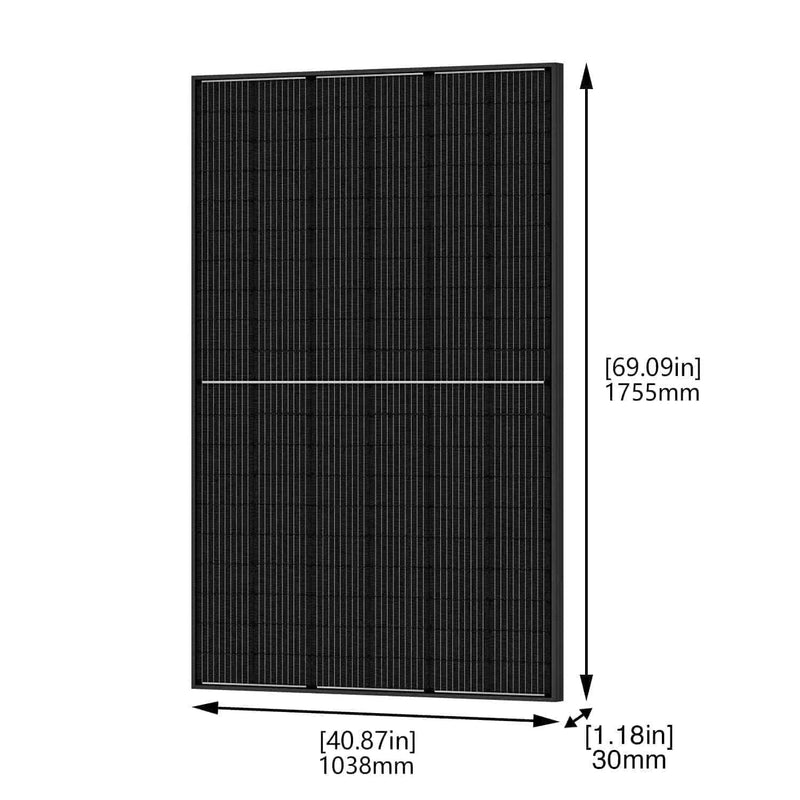

| Dimensions | 1755*1038*30mm(69.09*40.87*1.18 inch) |
| Weight | 20.5 kg (45.19 lbs) |
| Cell Type | Mono PERC 182×91mm |
| No.of Half-cells | 108 (6×18) |
| Frame | Anodized Aluminum Alloy |
| Front Glass | 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass |
| Operation Temperature | -40℃~+85℃ (-40°F ~+185°F ) |
| Junction Box | IP68 Rated, connector compatible with MC4 |
| Output Cables | 1200mm (47.24 inch) |
| Fire rating | UL: Type 1, IEC: Class C |
Get Your Estimated Runtime
Input power cannot exceed 10,000W. Runtime shown below is based on the selected option.
Input Your Device Wattage
Runs for:
00hrs
Note: Runtime shown is for reference only. Actual results may vary.
Manuals & Downloads
FAQ's
The “410W” rating refers to the panel’s maximum power output under ideal conditions, meaning it can produce up to 410 watts of solar power under standard test conditions. This helps you estimate how much energy the panel can generate.
410W panels typically use high-efficiency monocrystalline cells (often over 20% efficiency), meaning they convert a larger portion of sunlight into electricity compared to lower-efficiency panels.
Yes, advanced technologies like half-cell layout and PERC help 410W panels perform better in low light and partial shade compared to older panel designs, improving daily energy harvest.
Generally, yes, these panels use standard MC4 connectors and typical voltage ratings, making them compatible with most charge controllers, inverters, and solar generators when correctly configured.
