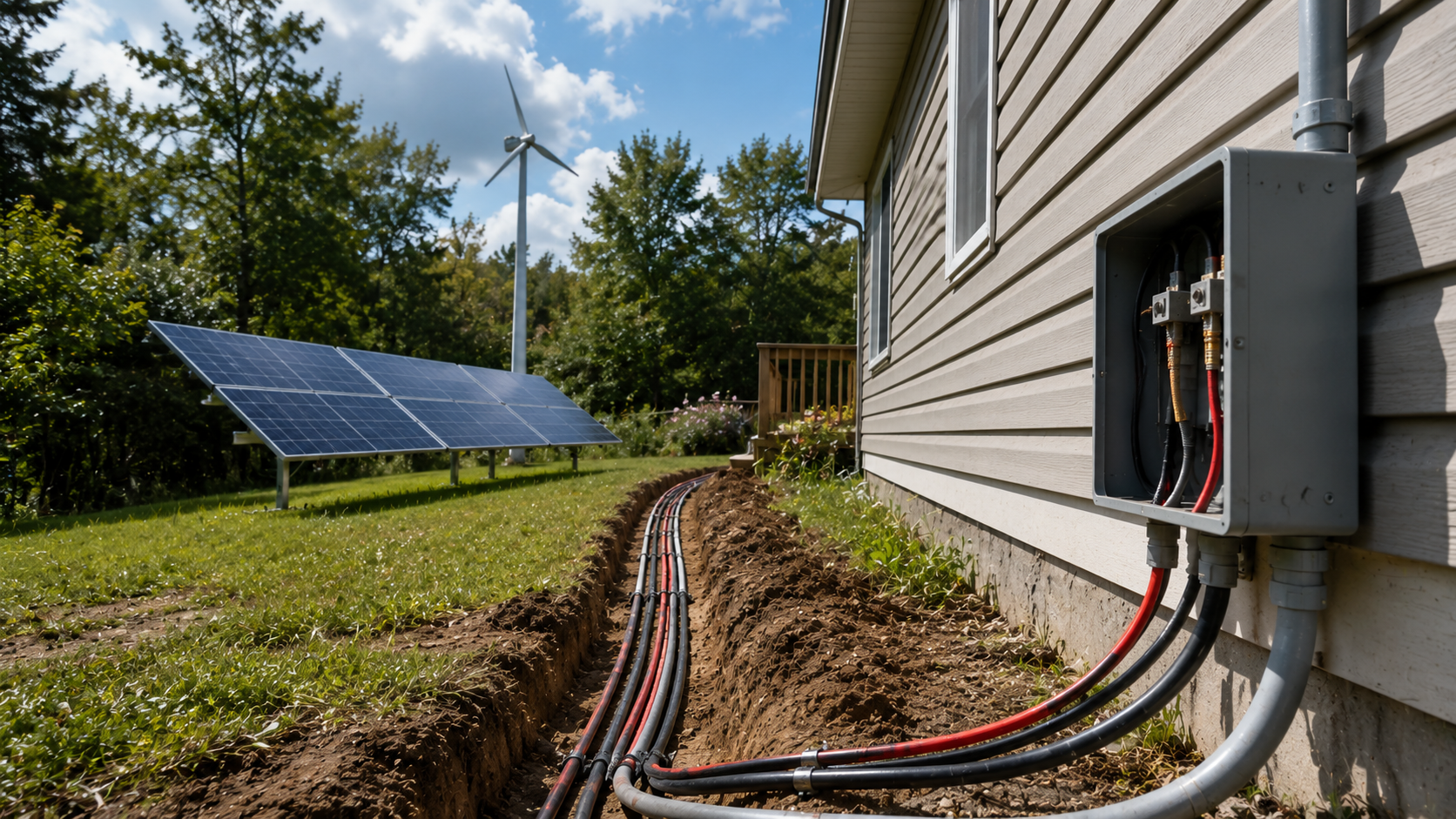

Defeating Voltage Drop: How to Calculate Cable Gauge (AWG) for Long-Distance Solar Panel and Wind Turbine Runs

Designing an off-grid energy system requires getting power efficiently from your generation sources to your battery storage. To secure reliable backup power, you must choose the correct wire size. Whether you are running long lines to a solar power generator, connecting a whole home power generator, or setting up portable backup power off-grid, line loss can quietly drain your energy output.

Our team helps homeowners defeat voltage drop across all installation sizes. In this guide, we explain how to calculate cable gauge (AWG) for long-distance solar panel and wind turbine runs in clear, easy-to-understand language.

Nature's Generator 125A Automatic Transfer Switch

Regular price $999.99

Regular price Sale price $999.99

Ensure seamless backup power with the 125A Automatic Transfer Switch. Compatible with solar generators, battery, and grid-tie systems for reliable energy.

Learn More

Buy now

What Is Voltage Drop and Why Does It Drain Renewable Power Over Long Distances?

Voltage drop is the loss of electrical pressure that happens as electricity travels through a wire. Every wire naturally pushes back against the electrical current moving through it. This natural resistance converts a portion of your electricity into heat instead of sending it to your batteries.

In short setups—like placing a solar panel five feet from a power station—voltage drop is tiny and does not matter much. However, off-grid systems often require long wire runs:

• Ground-mounted solar panels placed 100 to 200 feet away in a sunny yard to avoid tree shade.

• Wind turbines mounted on tall towers 150 feet away in open fields to catch strong breezes.

• Separate battery sheds built away from primary living areas.

As a wire gets longer, its resistance increases. If the wire is too thin over a long distance, that resistance acts like a bottleneck.

Based on our field testing, running a standard 12-volt solar array pushing 20 Amps through 100 feet of thin 10-gauge wire creates a loss of nearly 5 Volts. That means up to 40 percent of your total generated power turns into useless wire heat before ever reaching your battery bank!

The Basic Math Behind Voltage Loss

To understand how power gets lost in wires, you can look at these three plain-text steps:

• Total Circuit Resistance equals (2 times Distance in feet times Wire Resistance per 1,000 feet) divided by 1,000.

• Voltage Drop equals Current in Amps times Total Circuit Resistance.

• Power Loss in Watts equals Current in Amps squared times Total Resistance.

To keep your system running at peak performance, standard guidelines recommend keeping your total voltage drop under 3 percent for general appliances and under 2 percent for critical battery charging cables.

How Does System Voltage Impact Cable Gauge Sizing for Solar and Wind Systems?

Your operating system voltage plays a massive role in determining how thick your cables need to be. The basic power rule is easy to follow:

Power in Watts equals Voltage times Current in Amps.

To move a specific amount of power (Watts), increasing the system voltage allows you to decrease the current (Amps) by the exact same proportion. Cutting the current in half is a huge advantage because heat loss in a wire is tied directly to the square of the current. If you cut the current in half, your wire power loss drops by 75 percent!

When setting up high-capacity systems like the Powerhouse Gen 2, using higher input voltages lets you run long cables with much thinner, easier-to-handle wires without wasting energy.

What Step-by-Step Formula Calculates Cable Gauge (AWG) for Solar and Wind Runs?

Calculating the exact wire gauge for a direct current (DC) wire run takes three basic steps: calculating allowed voltage drop in volts, figuring out the required wire thickness in Circular Mils, and matching that number to a standard size chart.

Step 1: Calculate Allowed Voltage Drop

Multiply your system voltage by your targeted drop percentage (usually 2 percent, or 0.02, for charging batteries):

Allowed Voltage Drop equals System Voltage times Target Drop Percentage

Example: For a 24-volt system targeting a 2 percent drop: 24 Volts times 0.02 equals 0.48 Volts.

Step 2: Calculate Required Wire Area in Circular Mils

Circular Mils is the standard measurement unit for wire thickness. You can calculate the required Circular Mils using this plain text formula:

Required Circular Mils equals (2 times 12.9 times Current in Amps times One-Way Distance in feet) divided by Allowed Voltage Drop

Here is what these numbers mean:

• 2: Counts the full round-trip distance (the positive wire running out and the negative wire returning back).

• 12.9: The electrical resistance constant for copper wire.

• Current in Amps: The peak current flowing through the line.

• One-Way Distance: The straight distance from your solar panels or turbine to your generator.

Step 3: Match Circular Mils to the Wire Size Chart

Once you calculate your total Circular Mils, compare your number to the American Wire Gauge (AWG) chart below. Always round UP to the next available wire size to ensure safety.

Real-World Practical Example:

A customer sets up Nature's Generator Solar Panels located 120 feet away from their power unit. The panels run on 48 Volts DC and supply 15 Amps of charging current.

1. Calculate Allowed Voltage Drop: 48 Volts times 0.02 equals 0.96 Volts.

2. Calculate Circular Mils: Multiply 2 times 12.9 times 15 Amps times 120 feet to get 46,440. Then divide 46,440 by 0.96 Volts, which equals 48,375 Circular Mils.

3. Select Wire Gauge: Looking at the chart, 4 AWG provides 41,740 Circular Mils (a bit too small). To stay under the 2 percent loss limit over 120 feet, 2 AWG copper wire is the correct choice.

How Do Wind Turbine Long-Distance Cable Calculations Differ From Solar Arrays?

Calculating wire sizes for wind turbines is slightly different than calculating for solar panels. Solar panels output smooth Direct Current (DC) over two wires. Wind turbines, however, create 3-Phase Alternating Current (AC) right inside the turbine head.

An installation using the Nature's Generator Wind Turbine usually uses a 3-wire AC line running down from the turbine head to a controller placed near your batteries. Sending 3-phase AC across long distances is much more efficient than sending DC power:

1. Better Current Distribution: 3-phase AC splits the electrical load across three wires instead of two, reducing energy loss on each individual wire.

2. Formula Change: In the plain text formula, the front multiplier changes from 2 down to 1.732.

3-Phase AC Circular Mils equals (1.732 times 12.9 times Current in Amps times Distance in feet) divided by Allowed Voltage Drop

Example Field Case Study

One off-grid user installed a wind turbine on a tower 150 feet away from their building.

• DC Cable Attempt: Sending low-voltage DC over 150 feet required thick 4 AWG 2-conductor copper wire, costing hundreds of dollars.

• 3-Phase AC Method: Sending 3-phase AC over that same 150 feet allowed them to use standard 10 AWG 3-conductor wire instead.

Using 3-phase AC kept voltage steady during heavy winds, prevented equipment overheating, and saved substantial money on copper wiring.

What Are Recommended AWG Cable Sizes for Common Distances and Voltages?

To make planning your off-grid layout easier, our team put together this quick-reference chart. It shows the minimum recommended copper wire size to keep voltage drop under 2 percent across different distances:

This guide shows why higher voltage support—like the technology built into the Elite—makes running long solar lines much easier and more affordable.

What Real-World Problems Occur When Using Undersized Wire Gauges?

Using thin or undersized wires between your power sources and your battery bank can lead to real problems:

1. Early System Shutdown: Thin wires cause voltage to spike right at the charge controller input while remaining low at the battery. The controller mistakenly thinks the battery is full and turns off charging too early.

2. Lost Solar Output: During peak sunny hours, thin wires bottleneck the flow of current, preventing your generator from reaching a full charge.

3. Safety and Heat Risks: Thin wires get hot under heavy loads. Over time, that heat melts wire insulation, causing short circuits or fire risks.

4. Wasted Equipment Costs: High-efficiency solar panels and wind turbines cannot perform up to their potential if their energy is wasted as heat in cheap cables.

What Wiring Best Practices Ensure Maximum Efficiency for Off-Grid Backup Systems?

Follow these practical installation tips to get the most power from your setup:

• Wire Solar Panels in Series: Connecting solar panels in series increases system voltage while keeping amperage low. Doubling your voltage lets you run wires four times farther on the exact same wire size.

• Use Tinned Pure Copper Wire: Avoid cheap Copper-Clad Aluminum (CCA) wire for outdoor solar or wind setups. Aluminum wire has higher resistance, breaks easily when bent, and corrodes quickly outdoors.

• Protect Outdoor Cables: Put long outdoor wire runs inside protective PVC conduit or use direct-burial rated wire to guard against sunlight, moisture, and outdoor pests.

• Make Tight Connections: Loose wire connections create extra resistance and heat. Use properly rated MC4 solar connectors and tighten all screw terminals securely.

Maximizing Energy Harvest With Correct AWG Sizing

Defeating voltage drop comes down to choosing the right wire thickness for your specific distance and voltage. By measuring distances accurately, wiring for higher voltage, using plain-text calculations, and selecting proper AWG cable sizes, you ensure that every watt generated by your solar panels and wind turbine makes it safely to your battery bank.

When planning long-distance runs, combining smart wire choices with reliable power units protects your energy investment. Our team designs renewable systems and expansion equipment to support flexible off-grid setups. Matching well-sized cable runs with Nature’s Generator products ensures steady, dependable backup power whenever you need it most.
