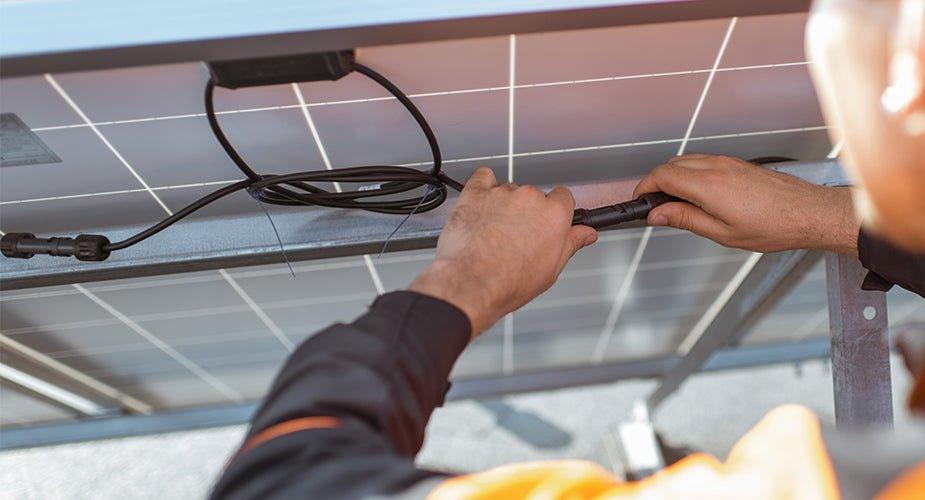

When building or expanding a home power system, the quality of your connections is just as vital as the quality of your panels. Understanding the technical nuances of solar panel connectors is essential for any homeowner looking to achieve energy independence. Whether you are setting up a portable solar generator for camping or configuring a robust whole home backup system with Nature’s Generator, the way your panels link together determines the safety, longevity, and overall output of your array.
This comprehensive guide will answer every critical question regarding solar connectors—from identifying the standard MC4 to the technical process of crimping and the dangers of mixing brands. By the end of this article, our team aims to provide you with the expertise needed to build a secure, high-performing solar connection that stands up to the elements and delivers maximum wattage to your system.
What are the different types of solar panel connectors?
While the industry has largely consolidated around a single standard, several types of connectors have existed over the years. Understanding the differences is crucial when upgrading older systems or integrating diverse components.
MC3 Connectors (Legacy Technology)
The MC3 was the predecessor to the MC4. These connectors relied on a friction-fit design without a locking mechanism. In many real-world usage scenarios we’ve encountered with older installations, MC3 connectors are prone to pulling apart or losing their weather seal over time. They are largely obsolete and are not directly compatible with MC4 without an adapter.
MC4 Connectors (The Current Standard)
The MC4 (Multi-Contact, 4mm) is the undisputed industry standard. Based on our experience, virtually all modern solar panels, including our high-efficiency Nature’s Generator 100W and 410W panels, utilize MC4 connectors. They are characterized by their cylindrical shape and a specialized locking mechanism that requires a tool to disconnect, ensuring they do not pull apart under tension.
T4 and H4 Connectors
Manufactured by companies like Amphenol, these are often marketed as "MC4-compatible." While they serve a similar purpose and feature similar 4mm pins, they often have slight variations in the internal gasket design or locking tabs. As we will discuss later, mixing these with genuine MC4s can lead to long-term reliability issues.
SolarLok Connectors
Also referred to as Tyco connectors, SolarLok connectors were prevalent in earlier solar panel installations. However, these types are obsolete compared to more modern alternatives like the MC4 connectors. SolarLok connectors were typically used for solar panels in series or parallel configurations, contributing to the overall structure of the solar array.
XT60 Connectors
Unlike the individual leads found on the back of solar panels, the XT60 is a high-current, keyed connector often used at the point of entry for portable power stations. We utilize these and similar high-amperage plugs because they offer a secure, polarity-protected connection that is easier for users to handle than raw MC4 leads when frequently setting up and tearing down a mobile system.
Why is the MC4 connector the industry standard for solar panels?
The transition to the MC4 standard was driven by the need for safety and environmental resilience. A solar array is expected to sit on a roof or in a field for 25 years, exposed to UV radiation, torrential rain, and extreme temperature swings.
1. Secure Locking Mechanism: Unlike older friction-based connectors, the MC4 features two locking tabs. Once pushed together, they "click" into place. This is a critical safety feature; if a connector were to partially vibrate loose, it could create an electrical arc—a high-temperature plasma discharge that is a leading cause of solar-related fires.
2. Superior Weatherproofing (IP Ratings): Most quality MC4 connectors carry an IP67 or IP68 rating. It indicates they are fully sealed against dust and can handle being submerged in water. Our team frequently hears feedback from customers in coastal or high-humidity regions who rely on this airtight seal to prevent internal corrosion of the copper contacts, which would otherwise lead to a drop in power production.
3. UV and Fire Resistance: Standard MC4 housings are made from high-grade PPO (Polyphenylene Oxide) or PC (Polycarbonate). These materials are specifically engineered to resist the "brittling" effect caused by decades of sun exposure. When you use a system, the included cables are designed to match this professional-grade durability.
Are all solar panel connectors compatible with each other?
A common misconception among DIY installers is that any connector with a 4mm pin is safe to use with another. This is false. At Nature’s Generator, we strongly advise against "cross-mating" different brands of connectors, even if they appear to fit together perfectly.
The Danger of Cross-Mating
Even though different manufacturers produce connectors that look like MC4s, their internal tolerances, metal plating, and gasket materials differ. For example, one brand might use a slightly harder rubber for the O-ring, while another uses a slightly different alloy for the metal pin.
-
Resulting Issues: When these mismatched parts are mated, the seal may not be perfectly watertight, leading to moisture ingress and corrosion.
-
Arcing Risks: A microscopic gap in the metal-to-metal contact can cause resistance to build up. Over time, this resistance creates heat. We have seen real-world examples where mismatched connectors have literally melted or caught fire due to the heat generated by a poor electrical fit.
Warranty and Compliance
Most major manufacturers and insurance companies will void a warranty if they find that different brands of connectors were mixed. For the safest and most efficient setup, we recommend using the cables provided with your solar panels or ensuring your extension cables use the same certified connector brand as your panels.
How do you connect solar panels in series versus parallel using MC4 connectors?
The way you use your solar panel connectors determines the voltage and amperage that reaches your generator. This choice is usually dictated by the specific requirements of your charge controller.
Wiring in Parallel (Increasing Amperage)
This is the standard configuration for many of our systems. By using "Y-branch" connectors (which have two inputs and one output), you can connect the positive leads of two panels together and the negative leads together.
-
The voltage remains the same (e.g., 18V-24V), but the amperage doubles. This is ideal for systems that have a lower voltage input limit but want to capture as much current as possible.
-
Our Power Pods are designed to work seamlessly with this type of expansion, allowing you to "daisy-chain" multiple units to increase your total battery capacity.
Wiring in Series (Increasing Voltage)
In a series connection, you plug the positive lead of Panel A into the negative lead of Panel B.
-
The voltage of the panels adds up, but the amperage stays the same. This is often used in larger home backup scenarios where the generator is located far from the panels. Higher voltage allows the power to travel over longer distances with less "voltage drop" or energy loss.
-
You must ensure the total voltage of your series string does not exceed the maximum input rating of your generator, or you risk damaging the internal electronics.
What tools and steps are required to properly crimp a solar panel connector?
If you are making your own custom-length cables, you cannot simply use a pair of standard pliers. Based on our experience, a proper crimping tool is the only way to ensure a gas-tight connection that won't fail over time.
Step 1: Strip the Wire
Use a professional wire stripper to remove about 10mm of insulation from your solar-rated PV wire (typically 10 AWG or 12 AWG). Be careful not to nick the copper strands; a damaged strand reduces the current-carrying capacity.
Step 2: Position the Metal Pin
Take the metal terminal (the "pin" for the male housing or the "socket" for the female) and place it in the appropriate slot of your MC4 crimping tool. Insert the stripped wire into the terminal.
Step 3: The Crimp
Squeeze the ratcheting crimper firmly until it releases. A good crimp should compress the metal "wings" of the terminal tightly around both the bare copper and a small portion of the insulation for strain relief.
Step 4: Assembly
Slide the plastic housing over the wire until you hear a distinct "click." This indicates the metal pin has locked into the internal plastic tabs. Finally, hand-tighten the screw-on end cap (the gland nut) to compress the rubber gasket around the wire, creating a waterproof seal.
How do I choose the correct wire gauge (AWG) for my solar connectors?
Selecting the right wire to go with your connectors is just as important as the connectors themselves. Most solar panel connectors are designed to fit 10 AWG or 12 AWG wire.
-
10 AWG (Thicker): This is the gold standard for most home backup systems. It has less resistance, meaning it can carry more current over longer distances without losing power to heat. If your panels are more than 30 feet from your unit, we always recommend 10 AWG wire.
-
12 AWG (Standard): Suitable for shorter runs (under 20 feet) or smaller portable setups. It is more flexible and easier to manage but will result in more power loss if used for very long distances.
Real-World Scenario: A customer was wondering why their 400W array was only producing 300W. After troubleshooting, we discovered they were using 50 feet of thin 14 AWG wire. By switching to 10 AWG wire with high-quality MC4 connectors, they immediately recovered nearly 15% of their lost power.
What are the signs of a failing or poorly installed solar connector?
Routine maintenance is the key to preventing system failure. Because these components are out of sight, they are often out of mind until something stops working.
1. Discoloration or Charring: If you notice the plastic housing of a connector looks brown, melted, or warped, it is a sign of extreme heat. This is usually caused by a poor crimp or a mismatched brand connection. Shut down the system immediately and replace the connector.
2. Physical Loose Fit: If you can pull the connectors apart without using an unlocking tool, the locking tabs are broken or were never fully engaged. This leaves the connection vulnerable to moisture and accidental disconnection.
3. Fluctuating Power Output: If your generator's display shows wildly fluctuating wattage on a clear, sunny day, it often indicates a "loose" electrical contact within one of the connectors.
How does Nature’s Generator simplify solar panel connections for home backup?
We understand that for many homeowners, the technical side of solar wiring can feel overwhelming. That is why we have built products that are designed to prioritize plug-and-play simplicity without sacrificing professional-grade safety.
Our team has engineered the Nature’s Generator ecosystem to use standardized, high-quality connections. When you use our official expansion cables and Y-branches, you are guaranteed:
-
Total Brand Compatibility: No risk of cross-mating or fire hazards.
-
Optimized Gauges: All our cables are sized to minimize voltage drop for their intended use.
-
Weather-Ready Performance: Our connectors are tested to handle the same rugged environments as our generators.
Building a Reliable Connection
Investing in high-quality solar panel connectors is one of the most cost-effective ways to protect your larger investment in solar energy. By sticking to the MC4 standard, avoiding the temptation to mix brands, and ensuring your crimps are professionally executed, you eliminate the most common points of failure in a solar array.
At Nature’s Generator, our goal is to empower you with a system that works when you need it most—during a grid outage or while living off-grid. By paying attention to these small but critical components, you ensure that every watt of sunlight captured by your panels safely reaches your batteries.
