When the power grids falters, the silence in a home can feel heavy. For many homeowners, that silence means a refrigerator full of food is at risk, the home office is dark, and the security system is offline. This is why a reliable power generator has moved from being a "nice-to-have" to a modern necessity.
Among the leaders in the green energy space, Nature’s Generator stands out as a versatile, eco-friendly solution. However, owning the power is only half the battle; getting that electricity into your home’s circuits safely and seamlessly is the other half.
In this guide, we are looking specifically at the 50A Automatic Transfer Switch (ATS) from Nature’s Generator. Whether you are a licensed electrician or a savvy homeowner preparing for a professional install, this walkthrough explains how to integrate this powerhouse into your electrical system.
Why the 50A Automatic Transfer Switch is a Game Changer
You might be used to the old-school manual transfer switches—the ones where you have to run outside in the rain to flip a heavy lever. The Nature's Generator 50A ATS changes that narrative.
Key Features of the 50A Model:
-
High Capacity: Supports up to 50 Amps with 120V/240V capability, making it ideal for the Nature's Generator Elite or Powerhouse systems.
-
Circuit Coverage: It can manage up to 24 circuits (using tandem breakers), allowing you to back up almost every essential area of a standard home.
-
Automatic Brains: It monitors your utility power 24/7. When the grid fails, it switches to your portable power generator automatically. When the grid returns, it shifts back and shuts the backup down.
-
Pure Sine Wave Friendly: Designed to work perfectly with the clean power output of the best solar generator units, protecting sensitive electronics like laptops and smart appliances.
Pre-Installation: Tools and Prep
Before cracking open the main service panel, you need to ensure you have the right gear. Safety is the priority here.
-
The Hardware: Nature’s Generator 50A ATS, the included 50A power cord, and the power inlet box.
-
The Tools: Non-contact voltage tester, wire strippers, screwdriver set (Phillips and Flathead), and a level.
-
The Space: This unit is roughly 23 inches tall. You’ll need a clear section of wall within 18 inches of your main electrical panel to keep the conduit run short and efficient.
Step-by-Step Installation Guide
1. Safety First: De-Energize
Kill the main breaker. This isn't a suggestion—it's the only way to work. Use your voltage tester to ensure the bus bars in the main panel are completely "cold" before proceeding.
2. Mounting the ATS
The 50A ATS features a central keyhole slot for easy mounting.
-
Drive a primary screw into a stud at eye level.
-
Hang the ATS and use a level to ensure it's straight.
-
Secure the unit using the remaining mounting holes in the back of the enclosure.
3. Installing the Power Inlet Box
The 50A kit usually comes with a separate power inlet box (CS6375).
-
Location: If you're using a gas generator, this must be outdoors. If you are using a Nature's Generator (solar), it can be indoors near the unit.
-
Wiring: Connect the X and Y terminals (Hot), the W terminal (Neutral), and the G terminal (Ground).
-

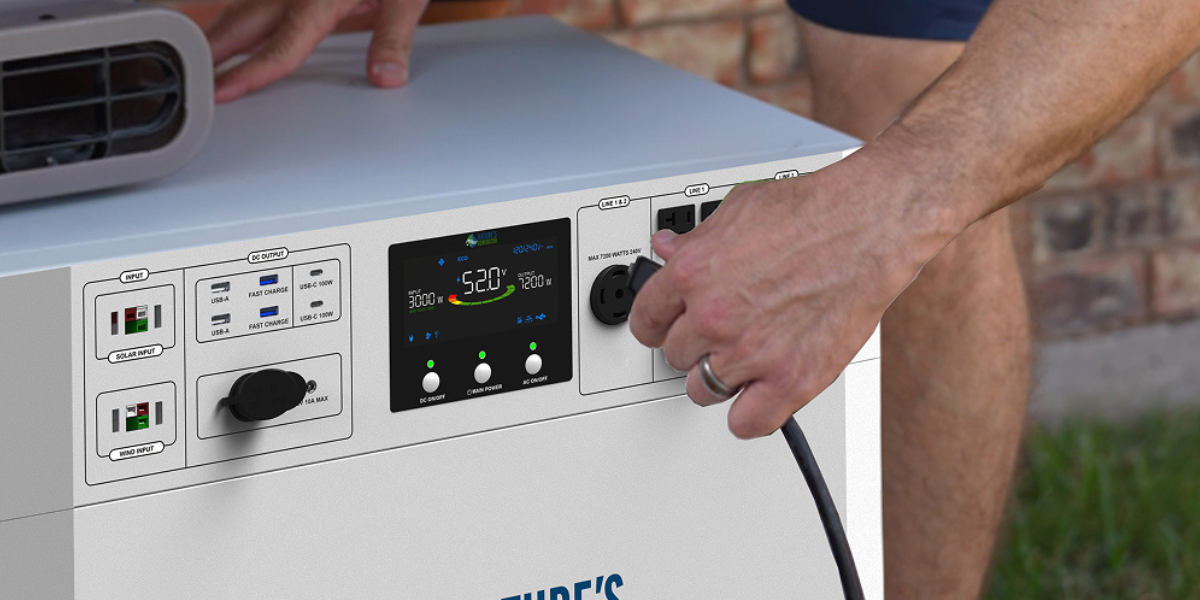

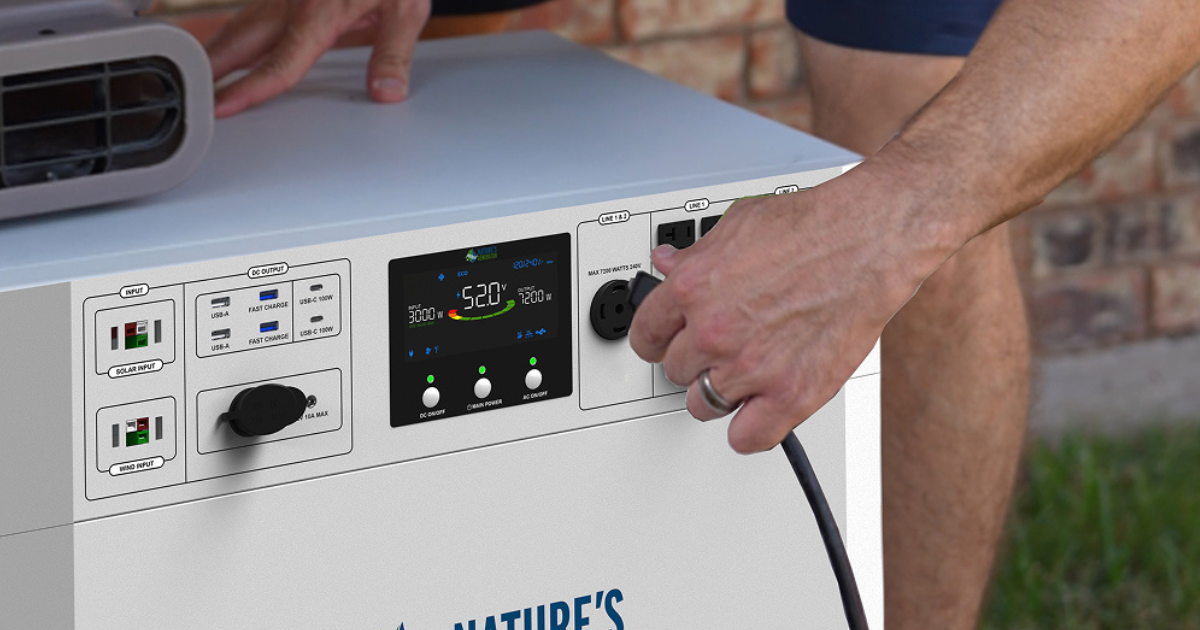

Connection: Use the provided 50A cord to link the Nature's Generator AC output to this inlet box.
4. Selecting and Wiring the Circuits
The 50A ATS acts as a sub-panel. You will move your most critical loads from the main panel into this switch.
-
Identify the Load: Choose circuits like the kitchen (fridge), well pump (if 240V), and master bedroom.
-
Move the Hot Wire: Disconnect the hot wire of the chosen circuit from its breaker in the main panel.
-
Connect to ATS: Connect that wire to the "Load" wire coming from the ATS.
-
The "Supply" Wire: Take the corresponding "Line" wire from the ATS and connect it to the now-empty breaker in your main panel.
-
Neutral and Ground: Ensure the white neutral and green ground wires from the ATS are securely bonded to the respective bars in your main panel.
5. The 120V/240V Balance
Since the 50A model supports 240V, you can power heavy-duty items like well pumps or electric water heaters. Ensure you use double-pole breakers within the ATS enclosure for these specific loads to maintain a balanced system.
Testing Your New Setup
Once the "dead front" covers are back on and the wiring is tucked away, it’s time for the test.
-
Keep the main utility breaker OFF (simulating a blackout).
-
Power on your Nature’s Generator.
-
The ATS should detect the power from the generator and click over.
-
Verify that your selected lights and appliances are running.
-
Flip the main utility breaker back ON. The ATS should wait a moment (to ensure the grid is stable) and then switch back to utility power automatically.
Maintenance for Long-Term Reliability
Your portable power generator system is only as good as its maintenance.
-
Monthly Exercise: Run the system under load once a month for 10 minutes. This keeps the ATS internal components limber and ensures the batteries in your Nature's Generator stay healthy.
-
Check Connections: Every six months, do a visual check of the power cord and inlet box for any signs of wear or heat damage.
-
Firmware Updates: If your Nature's Generator unit is app-connected, keep its software up to date to ensure the best communication with the ATS.
Integrating a 50A Automatic Transfer Switch with a Nature’s Generator is the ultimate upgrade for home energy independence. It bridges the gap between a "portable battery" and a "whole-home backup system."
By choosing the best solar generator setup and pairing it with a professional-grade ATS, you aren't just surviving a power outage—you're outsmarting it. You gain the luxury of automated protection, knowing that even if the grid goes down while you're at work or asleep, your home will stay powered.
To ensure the best results, please don’t hesitate to contact us for professional assistance.
Disclaimer: Electrical work can be dangerous. This guide is for informational purposes. Always consult with or hire a licensed electrician to perform the installation of a transfer switch to ensure compliance with local electrical codes (NEC)
