1. Important Safety Instructions

1.1 Safety Instructions

1.1.1 Read these instructions.

1.1.2 Keep this user manual in a safe and accessible place.

1.1.3 Take note of all warnings to avoid injury or damage.

1.1.4 Follow all instructions.

1.1.5 The safety instructions provided herein are for illustrative purposes that include but are not limited to those listed in this manual. Actual operation shall comply with all applicable safety standards.

1.1.6 Always operate or store the equipment in the conditions specified in this manual.The installation and ambient conditions must comply with the regulations in the relevant national and local standards.

1.1.7 Avoid unauthorized disassembly, equipment replacement, or modification of software codes.

1.1.8 Nature’s Generator shall not be liable for the equipment damages, personal injury, property loss or other damages resulting from the following circumstances:

• Force majeure events such as earthquakes, fires, storms, floods, or mudslides.
• Damages caused by improper handling and installation.
• Damages resulting from inadequate storage conditions as specified in the manual.
• Hardware or data damage caused by customer negligence, improper operation, or intentional actions.
• System damage caused by third parties or customers.
• Adjustments, changes, or removal of labels in violation of this manual.

1.1.9 This product may only be used indoors and that no outdoor use in allowed under any conditions.

1.2 General Requirements

1.2.1 Do not install, use or maintain this equipment near water.

1.2.2 Do not install, use and maintain this equipment in adverse weather conditions such as lightning, rain, storm, snow and earthquake.

1.2.3 Keep this equipment away from heat sources or high temperatures or direct sunlight.

1.2.4 Do not insert foreign objects into or block any ventilation openings.

1.2.5 Always turn off the power source before starting any electrical work.

1.2.6 Allow a minimum 18 inch clearance from all sides of the equipment for proper air ventilation to dissipate heat.

1.2.7 Do not use near flammable gases or fumes or other equipment that produce a large amount of heat.

1.2.8 Do not store this equipment with flammable or explosive materials.

1.2.9 Do not place the equipment on an unstable or inclined surface.

1.2.10 Use the equipment for its intended purpose and avoid stacking objects on top of it during storage or use.

1.2.11 Keep the system out of the reach of children and pets.

1.2.12 Only use attachments/accessories approved by the manufacturer.

1.2.13 Regularly inspect the equipment and its accessories for damage or deterioration.

1.2.14 Refer all servicing to qualified service personnel. Servicing is required when the equipment has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the equipment, the equipment has been exposed to rain or moisture, has been dropped or does not operate normally.

1.2.15 The equipment should not be exposed to dripping or splashing, and no objects filled with liquids, such as drinking glasses or vases, should be placed on the equipment.

1.2.16 The transportation, wiring, installation and maintenance shall comply with all applicable laws, regulations and standards.

1.2.17 Do not make changes or modifications to the equipment’s structure, installation sequence, etc.

1.2.18 Position the system on the flat surface and firmly secure it to a wall or other solid objects.

1.2.19 After installing the equipment, remove the idle package materials from the site such as cartons, foam, plastic, nylon ties, etc.

1.3 Warning

1.3.1 The power inlet is for inlet use only. Not for use as an outlet.

1.3.2 CONNECTIONS TO THE INLETS SHALL BE MADE BY QUALIFIED PERSONNEL ONLY.

1.3.3 FOR USE IN A WEATHER PROTECTED AREA ONLY.

1.3.4 DANGER - Risk of electric shock - Do not connect or disconnect the power inlet when energized.

1.3.5 Plug connection should be in the following order: equipment grounding conductor connectors, grounded circuit conductor connectors, and ungrounded conductor connectors. Disconnection should be in the reverse order.

1.3.6 Verify the condition of power source prior to manually transferring. Manual operation may result in out-of-phase transfer when both sources are energized.

1.3.7 THE POWER TRANSFER KIT MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN IN COMPLIANCE WITH ALL APPLICABLE ELECTRICAL CODES!

1.3.8 When replacement parts are required, make sure that the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, personal injury, or other hazards.

1.3.9 To ensure safety, your home's electrical panel system must be correctly bonded and grounded.

1.3.10 If your home has shared neutral circuits (also known as multi-wire branch circuits),it's crucial to connect them to different lines (phases) in your transfer switch. Placing shared neutral circuits on the same line might lead to overloading neutral wires, which can cause overheating, damage to your electrical system, and even a fire hazard.

1.4 Caution

1.4.1 Manual Transfer Switch - This device will not automatically transfer to an alternative source.

1.4.2 Improper installation of this transfer kit may cause damage or injury by electrocution or fire. Please do not connect the appliances that exceed the capacity of this transfer kit. If the transfer switch is connected to AFCI or GFCI branch breakers, the AFCI or GFCI protection will be lost when the rocker switch in the transfer switch is in the GEN position.

1.5 Storage Instruction

1.5.1 Make sure the place where to store the system is well ventilated and spacious.

1.5.2 Do not store the system in flammable or explosive environments.

1.5.3 Keep the system out of the reach of children and pets.

1.5.4 Do not stack anything on top of the equipment during storage.

1.5.5 Avoid exposing the equipment to rain, humidity or direct sunlight.

1.5.6 Store the product in the conditions described in this manual.

1.6 INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

1.6.1 WARNING – When using this product, basic precautions should always be followed, including the following:

a. Read all the instructions before using the product.
b. To reduce the risk of injury, close supervision is necessary when the product is used near children.
c. Do not put fingers or hands into the product.
d. Use of an attachment not recommended or sold by manufacturer may result in a risk of fire, electric shock, or injury to persons.
e. To reduce risk of damage to the electric plug and cord, pull the plug rather than the cord when disconnecting the cable.
f. Do not operate the transfer switch with a damaged cord or plug, or a damaged output cable.
g. Do not disassemble the transfer switch, take it to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of fire or electric shock.
h. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
i. The power transfer switch must be installed by a qualified electrician in compliance with all applicable electrical codes!
j. Do not charge the Nature's Generator by wall through AC input port when using the power transfer switch. It might trigger protection.

1.7 WARNING: GROUNDING INSTRUCTIONS

1.7.1 When the local codes require, this product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.

1.7.2 WARNING – Improper connection of the equipment grounding conductor is able to result in a risk of electric shock. Check with a qualified electrician if you are in doubt as to whether the product is properly grounded.

1.8 Upgrade Circuit Breakers

-This product is supplied with 120V/15-amp and 240V/20-amp circuit breakers as default. All circuit breaker positions can accommodate 15- or 20-amp circuit breakers. The positions 1L, 2L, 1R and 2R (only these positions) can accommodate 30-amp circuit breakers. To remove a circuit breaker, remove the compartment cover, unscrew the terminal screw in the breaker to be removed, removed the wire, tilt the top of the circuit breaker towards right and lift up and out. Reverse the procedure to install another breaker.

-Use 30-amp circuit breakers in positions 1L, 2L, 1R and 2R and use 20-amp circuit breakers in all other positions. Rating of a transfer switch circuit breaker should not exceed the rating of the corresponding branch circuit breaker in the load center.

1.9 Install and Remove Switch Bridge

-The rocker switches in position 1 (L&R) and position 2 (L&R) have a bridge to connect each other. The bridge can be removed if you desire to use position 1 (L&R) and 2(L&R) for 120V.

-This product includes 4 spare switch bridges. You can bridge the switches in position 3, 4, 5 and 6 if you desire to use any two adjacent switches for 240V.

2. Unpack your Power Transfer Switch

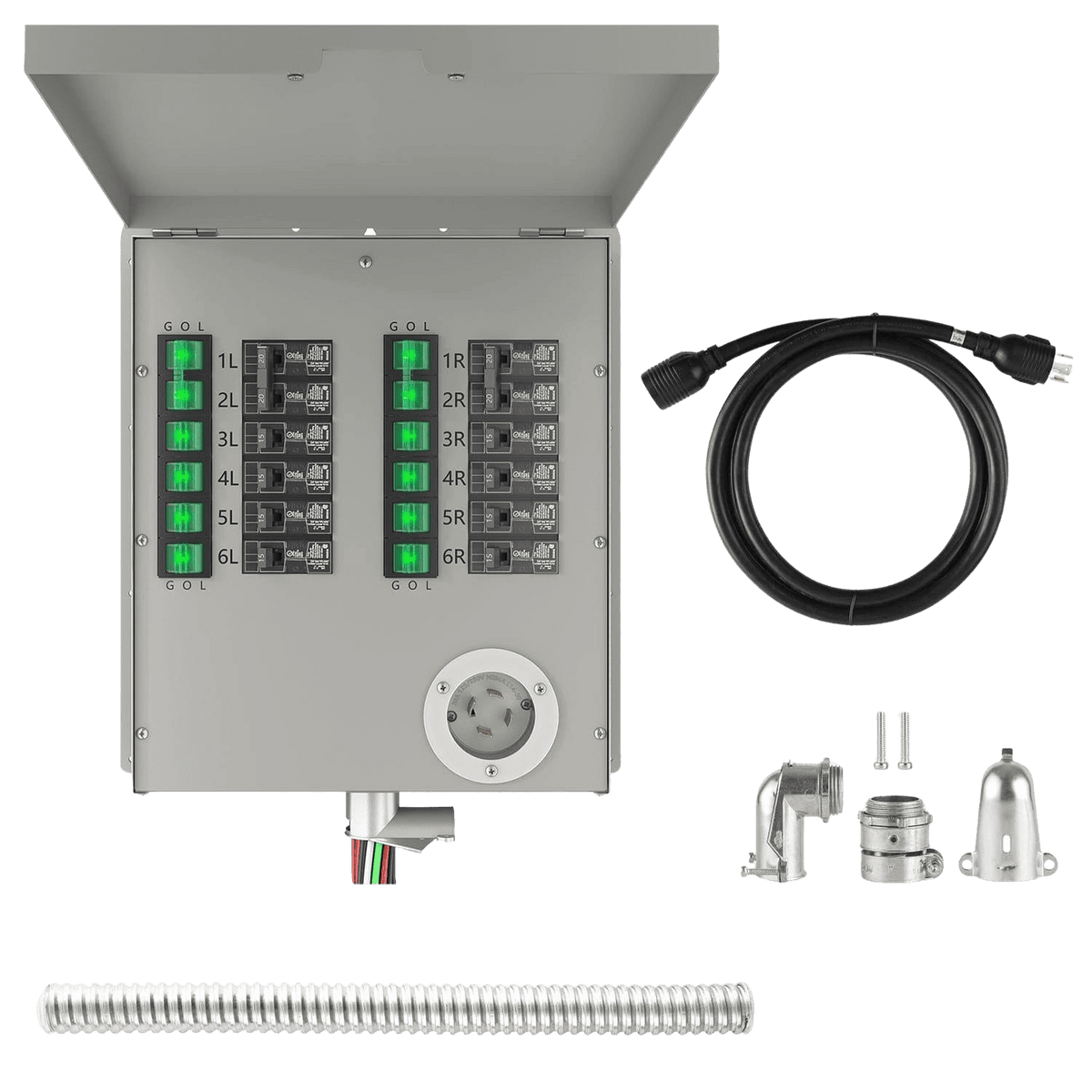

2.1 Power Transfer Switch

2.2 Inlet


2.2.1 For 30A Model

2.2.2 For 50A Model

2.3 Flexible Conduit

2.4 Cable Clamps

2.5 Power Cord:

2.5.1 For 30A Model

2.5.2 For 50A Model

2.6 This User Manual

2.7 Spare Switch Bridges x 4

2.8 Inlet Box (for 50A model only)

3. Install Your Power Transfer Switch

Rocker Switches: These switches allow you to select either G (generator) or L (utility) as the power source for the branch circuits that have been wired through the transfer switch. The O (off) position removes branch circuit from both utility and generator power.

Breakers: Each transfer switch circuit has a 1-in interchangeable circuit breaker that protects the branch circuit when the rocker switch is in the G position. In the L position, each branch circuit is protected by the breaker in the load center.

Power Inlet Knockouts: The locations to install the power inlet. Once the power inlet is installed, the power cord is plugged into the inlet.

Compartment Cover: Remove to install power inlet.

Flanges: Mount the power transfer switch on the wall.

Enclosure: Powder coated steel.

Flush Mounting Holes: Work with flush mounting kit (sold separately) to install the power transfer switch into the wall.

Knockouts: For hardwire installation.

3.1 Key Components of the Transfer Switch

3.2 Installation Instructions

Get the tools ready.
The following items (not included) will be needed for installation:
Power drill
Screwdriver
Wire cutters/Stripper
Anchors and screws
Wire connectors
Wires and cable clamps for inlet box installation

3.3 Planning the Load

Before you install your Power Transfer Switch, you'll want to strategize which appliances you'll run during a power outage. This all begins with understanding how your generator produces power.

Most generators equipped with four-prong, twist-lock 30 Amp receptacles and set up for home standby generate 120/240 Volt power. This is just like the electricity your home receives from the utility. It's ideal because it allows you to power common 120 Volt circuits (think lights and small appliances) and also link two 120 Volt circuits to run 240 Volt devices, like a well pump.

Your generator produces power in two equal halves. For instance, a 7200-watt generator effectively has two 3600-watt "lines" or phases. To get the most out of your generator, it's crucial to balance the load evenly between these two halves of your transfer switch: Line 1 and Line 2. You'll want to divide your highest-wattage
devices as evenly as possible.

Your Power Transfer Switch has 12 circuits: Circuits 1L, 3L, 5L, 2R, 4R and 6R belong to Line 1, while Circuits 2L, 4L, 6L, 1R, 3R and 5R belong to Line 2. For example, you might wire the kitchen light to Circuit 3L and your refrigerator to Circuit 3R. You could also reserve Circuits 1L and 2L, linked by the Switch Bridge, for a double- pole breaker controlling a 240 Volt well pump. It's a good idea to study which existing appliances are on which line (phase) in your home's electrical panel to plan accordingly.

Your Power Transfer Switch also lets you manually manage the load by turning appliances on and off as needed, preventing you from overloading either half of your generator. If you prefer not to manage manually, include a buffer in your calculations. This buffer should equal the largest start-up wattage of any appliance you'll run continuously. This buffer, combined with your generator's peak wattage, will account for the periodic motor start-up of larger appliances like your refrigerator. If your transfer switch has watt meters, they can help you monitor this.

3.4 Install the Power Inlet

3.5 Mount the Power Transfer Switch

3.5.1 Please follow these steps.

a. Locate your load center.
b. Decide the appropriate location to install the power transfer switch. Make sure it is within 18-inch range from your load center as figure 1 shows.
c. If you prefer to flush mount the power transfer switch, purchase the flush mount kit through www. naturesgenerator.com or 800-975-7909 before the installation.
d. Mount the power transfer switch by securing the screws to the wall through the holes on the flanges.
e. You may cut a piece of plywood as the supporting board in between the power transfer switch and the wall for additional support.

3.6 Prepare the Load Center

3.6.1 Please follow these steps.

a. Turn off the main circuit breaker in the load center to ensure your safety.
b. Remove the cover of the load center.
c. Remove an 1-1/4 inch knockout on the near side of the load center towards the power transfer switch.
d. Cut the flexible conduit to the length you desire. Insert the wires from the power transfer switch though the flexible conduit and connect the other end of the flexible conduit to the knockout. Secure the flexible conduit with the cable clamps provided.
e. Do not attempt to bend the flexible conduit beyond its structural capabilities.


Warning: Verify the condition of power source prior to manually transferring. Manual
operation may result in out-of-phase transfer when both sources are energized.

Warning: Do not start the generator until all connectors are connected or made to be
inaccessible. Any terminal may be energized when any cable is connected. De-energize cables at the generator prior to connecting or removing any connectors.

Caution: This switch will not transfer if overcurrent device opens due to fault.

Caution: Manual Transfer Switch – This device will not automatically transfer to an
alternative source.

Danger: Risk of electric shock.

Danger: Any Terminal may be energized when any cable is connected. De-energize
cables at the generator prior to opening the cover.

Danger: Risk of electric shock. For use only for connection of a portable generator to
the source terminals of a transfer switch, such that the inlets are only energized from
the generator.

3.7 Installing 120V Circuits

Establish which lines will be the most critical to you in the time of a power outage. For example, let's assume that switch 3L will be designated to supply power to the kitchen lights.

3.7.1 Please follow these steps.

a. Turn off the corresponding kitchen light circuit breaker. Undo the screw that secures the wire to the circuit breaker, then disconnect the wire from the circuit breaker.
b. On the transfer switch, find the wires marked with the number 3L, there should be one black and one red.
c. As figure 2 shows, feed the red 3L wire into the kitchen light breaker. Strip approximately 5/8" off from the end of the wire, connect the stripped red wire to the kitchen light circuit breaker and tighten the screw.
d. Cut the black 3L wire to a similar length for aligning with the wire removed from the kitchen light circuit breaker in step a above. Strip approximately 5/8" from the end of the black wire. Connect black 3L wire and the wire that was removed from the circuit breaker in step a by twisting a wire nut.
e. This completes the installation of the transfer switch for backup power to your kitchen light.
f. Repeat steps a - e for each of the remaining circuits.

3.8 Installing 240V Circuits

Establish which 240V lines will be the most critical to you in the time of a power outage. For example, let's assume that switch 1L and switch 2L will be designated to supply power to the pump.

3.8.1 Please follow these steps.

a. Turn off the corresponding pump circuit breakers. Undo the screws that secure the wires to the circuit breakers. Then disconnect the wires from the circuit breakers.
b. On the transfer switch, find the wires marked with the number 1L and number 2L, Each number shall have one black wire and one red wire.
c. As figure 2 shows, feed both red wires into the pump breakers. Strip approximately 5/8" off from the end of the wire, connect the stripped red wire to the pump circuit breaker and tighten the screws.
d. Cut both black wires to a similar length for aligning with the wires removed from the pump circuit breaker in step a above. Strip approximately 5/8" from the end of the black wires. Connect black wires and the wires that were removed from the circuit breakers in step a by twisting wire nuts.
e. This completes the installation of the transfer switch for backup on your pump. Repeat steps a-e for each of the remaining circuits.

3.9 Completing the Installation

When you have wired all the load circuits in the transfer switch, only the white neutral wire and the green ground wire remain.

3.9.1 Please follow these steps.

a. Insert the white neutral wire into an unused opening in the neutral bar in the load center and tighten the screw (Figure 2).
b. Insert the green ground wire into an unused opening in the ground bar, if existing, and tighten the screw. If no ground bar exists, insert the green wire into an unused hole in the neutral bar and tighten the screw.
c. Replace the cover to the load center.
d. Fill in the chart on the transfer switch to identify your emergency circuits and corresponding circuit numbers in the load center.
e. Return all load center branch circuits and main breakers to the "ON" position.
f. Move all rocker switches on the transfer switch to the "L" position. Installation is now complete.

4. Connect Your Power Transfer Switch to Generator

Once the Power Transfer Switch has been successfully installed, you can now connect your Power Transfer Switch to your Generator by using the included power cord. The steps below are using Nature’s Generator Lithium 6000 as an example.
a. Fit the female connector of the included power cord into the power inlet of your Power Transfer Switch. Turn the connector clockwise to secure the connection.
b. Insert the male connector of the included power cord into the AC outlet on the generator. (30A model shown)

5. Use Your Power Transfer Switch

Once you've connected the Power Transfer Switch to the Nature's Generator's Generator, now when there is no utility power, you are still able to power your most important electrical items.

5.1 When you experience power loss simply follow these steps to continue powering your items:

5.1.1 Please follow these steps.

a. Turn on the Nature’s Generator other generator's AC inverter output.
b. Select the rocker switches of the circuits that you want your Nature’s Generator or other generator to power and move their positions from L to G. Rocker switches will light up and are ready to use.
c. Make sure the breakers in Power Transfer Switch are in ON position. You are now ready to go!

5.2 When your power is restored:

5.2.1 Please follow these steps.

a. Move the position of the rocker switches from G to L.
b. Turn off the Nature’s Generator or other generator's AC inverter output.

6. FAQ

Where shall I install the Power Transfer Switch?
The conduit is approximately 18 inch long with the clamps. It is recommended to install it in a close area to your load center.

Can I use the Power Transfer Switch and Nature’s Generator to back up 240V?
Yes. It works on both 120V and 240V.

What happens when the utility power is restored?
When your utility power is restored, other lights and appliances on the circuits that are not connected to Power Transfer Switch will turn on. To transfer the circuits on the generator to utility power, flip the rocker switches back to the L position and shut down your generator.

Will the surge damage my Nature’s Generator when the utility power is restored?
No. The circuits that are connected to Power Transfer Switch are isolated from the utility power. There is no danger of back feeding the utility power.

What will I be able to power?
Power load and run time depend on the generator that connects the power transfer switch. Please refer to your generator's manual to understand the output wattage and capacity.

Can I use it off the grid like in cabin or RV?
Yes. If it is always powered by your generator, keep the rocker switch on your Power Transfer Switch in G position.

Can the Power Transfer Switch recharge my generator?
No. The Power Transfer Switch does not recharge your generator.

Can the Power Transfer Switch work with other Generators?
Yes. It works with other battery powered generators. It can work with fuel powered generator, but the inlet and the inlet box (included in 50A model) need to be installed outdoor for the safety.

Why is my load center triggered to shutdown when I charge my generator?
It is possibly when it is in the self charing loop as you are charging your generator while powering the same circuit through the power transfer switch. Do not charge the generator from the same load center that the power transfer switch backs up.

7. Specifications

Power Capacity:
30A model: 7,200 watts
50A model: 12,000 watts
Number of Circuits: 12 circuits
Voltage: 120 / 240 Volts
Conduit Length: 18 inches
Conduit Diameter: 1 1/4 inch
Dimensions:
30A Model: 14 1/8 inch x 15 1/4 inch x 4 1/4 inch (358 mm x 390 mm x 107 mm) W x D x H
50A Model: 14 1/8 inch x 15 1/4 inch x 5 inch (358 mm x 390 mm x 127 mm) W x D x H
Weight:
30A model: 27.6 lbs (12.5 kg)
50A model: 37.5 lbs (17.0 kg)

8. Notice

Nature's Generator products, services, and features are sublect to the agreed-upon terms and conditions during purchase. Please note that some products, services, or features described in this manual may not be available under your purchase contract. Unless otherwise specified in the contract, Nature's Generator makes no representations or warranties of any kind, express or implied, with respect to the contents of this manual. The contents of this manual are subject to change without notice. Please get the latest version from: https://naturesgenerator.com/pages/help-center lf you have any questions or concerns about this manual, please contact Nature's Generator support for further assistance.

9. Warranty

9.1 Limited Warranty

Natures Generator Inc. warrants to you, the original purchaser/owner of the product purchased and used in the United States, that all products shall be free of defects in the original manufacture of the materials or workmanship from the original date of delivery through the specific “Warranty Period” -- with each product’s
warranty period specifics set forth herein.

Nature’s Generator warrants the product(s) purchased directly online from Nature’s Generator or from a Nature’s Generator authorized dealer/reseller (in its original packaging and with its warranty statement inside) against defects in materials and workmanship when used in accordance with the product’s Nature’s Generator User Manual, technical specifications, and other Product published guidelines during the specific product’s Warranty Period stated below starting from the date of delivery to the original purchaser/owner.

The exclusive remedies available under this Limited Warranty are product repair or replacement which can only be performed by Nature’s Generator or an approved dealer. To receive warranty service, the purchaser/owner must contact Nature’s Generator customer service for issue-determining troubleshooting and to ensure the owner understands all of the service procedure steps.

9.2 Limited Warranty Coverage for Specified Products:

9.2.1 For Nature’s Generator Transfer Switches: Warranty Coverage for sixty (60) Months with:

Months 1-12: Shipping, Parts and Labor.
Months 13–24: Parts & Labor
Months 25-36: Parts Only
Months 37-60: Major Parts Component*
(*i.e. Contactors, Controlling Modules.)

9.3 Warranty Guidelines:

9.3.1 Warranty begins upon delivery of the product to the purchaser/owner.

9.3.2 Unit must be registered and have proof of purchase available.

9.3.3 Any and all applicable warranty repairs and/or concerns must be performed and/or addressed by Nature’s Generator.

9.3.4 Nature’s Generator will, at its sole discretion, repair or replace any part(s) which, upon evaluation, inspection, and testing by Nature’s Generator is found to be defective.

9.3.5 Any equipment the purchaser/owner claims to be defective must be evaluated by Nature’s Generator.

9.3.6 Damage to any covered components caused by use of an after-manufacture incompatible part or parts will not be covered by this warranty.

9.3.7 Any damage caused by the owner after receipt of the product is the responsibility of the owner and is not covered by this warranty.

9.3.8 Proof of performance of all required maintenance must be available.

9.3.9 Shipping to and from Nature’s Generator for service will only be covered for 12 months and for a product with a manufacturer’s defect requiring repair or replacement. If, upon inspection, it is found there is not a manufacturer’s defect -- but instead an issue was caused by owner error or maintenance negligence or misuse -- the shipping, parts, and repair labor will be paid by the owner.

9.4 What does this Warranty Cover?

This Limited Warranty is conditioned on proper use of the product.
During the Warranty Period, if the original manufacture of the materials or workmanship of the product is determined to be defective by an authorized dealer or Natures Generator, then Natures Generator will at its sole discretion: (1) repair the product with new or rebuilt parts; or (2) replace the product at no charge with
new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Natures Generator Inc. and are not returned. If service of products or parts are required after the Warranty Period expires, the product owner must pay all shipping, parts and labor charges. This warranty lasts as long as the original purchaser owns the product during the Warranty Period. Warranty coverage terminates if the original owner sells or otherwise transfers the product. As far as applicable law allows, the Warranty Period will not be extended or renewed or otherwise affected due to subsequent exchange, repair, or replacement of the Product. Product or part(s) repaired or replaced during the Warranty Period will be warranted for the remainder of the original Warranty Period from the date of repair or replacement.

9.5 The following will NOT be covered by this warranty:

9.5.1 Costs of normal maintenance.

9.5.2 Normal wear and tear including, without limitations, wear and tear of batteries which are consumables.

9.5.3 Damage to product caused by accidents, handling, or incorrect storage.

9.5.4 Damage/failures caused by operation with loads or installations other than what is recommended or specified by Nature’s Generator.

9.5.5 Unauthorized modification/misapplication will not be warranted unless authorized by Nature’s Generator in writing.

9.5.6 Damage to any covered components or consequential damages caused by the use of a non-compatible part(s) or noncompliance with Product instructions.

9.5.7 Failures due to normal wear and tear, rough handling, accident, misuse, abuse, negligence, improper installation, incorrect sizing, as well as fire, water, lightning or other acts of nature.

9.5.8 Damage related to rodent, reptile, and/or insect infestation.

9.5.9 Diagnostics or repairs performed by individuals other than Nature’s Generator or not authorized in writing by Nature’s Generator.

9.5.10 Damage that occurs because the product was not properly installed and/or was installed in a location that is not protected from weather if the product’s user manual so directs.

9.5.11 Failures caused by any force majeure (act of God) or external cause including, and without limitation, fire, theft, freezing, war, lightning, earthquake, windstorm, hail, water, tornado, hurricane, or any other matters which are reasonably beyond the manufacturer’s control.

9.5.12 Shipping costs associated with expedited shipping.

9.5.13 Any incidental, consequential, or indirect damages caused by defects in materials or workmanship, or any delay in repair or replacement of the defective part(s).

9.5.14 Failure to adequately package the product for transportation.

9.5.15 Extreme or external causes beyond the manufacturer’s reasonable control including but not limited to failures or surge fluctuations in electrical power or failures to wireless networks or environmental electromagnetic interference or damaging solar flares.

9.5.16 Connection to improper power supply or faulty home wiring.

9.6 Please note that the Limited Warranty does not cover the following:

• Cosmetic damage
• Damage due to force majeure, such as lightning strikes, fire, flood, etc..
• Accident
• Misuse
• Abuse
• Negligence
• Modification of any part of the product
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage supply or faulty house wiring
• Refurbished products
• Consumables, such as batteries
• Products where the factory applied serial number has been altered or removed.
For these cases, repair labor fee, plus the cost of the part(s) to be replaced, and shipping will be charged to the
customer.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER/OWNER’S EXCLUSIVE REMEDY. NATURES GENERATOR INC SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO: LOSS OR CORRUPTION OF DATA, LOSS OF USE OF PRODUCTS OR FUNCTIONALITY, LOSS OF BUSINESS, LOSS OF CONTRACTS, LOSS OF PROFITS, LOSS OF REVENUES, LOSS OF ANTICIPATED SAVINGS, INCREASED COSTS OR EXPENSES FOR ANY INDIRECT LOSS OR DAMAGE OR ANY CONSEQUENTIAL LOSS OR DAMAGE OR ANY SPECIAL LOSS OR DAMAGE WITH RESPECT TO THE PRODUCT. ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE SPECIFIC PRODUCT WARRANTY PERIODS AND TERMS SET FORTH HEREIN. NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD ENDS. THIS WARRANTY SUPERSEDES ALL OTHER WARRANTIES EXPRESS OR IMPLIED. SPECIFICALLY, NATURE’S GENERATOR MAKES NO OTHER WARRANTIES AS TO THE MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. PURCHASER’S SOLE AND EXCLUSIVE REMEDY AND NATURES GENERATOR’S ONLY LIABILITY SHALL BE THE REPAIR OR REPLACEMENT OF PART(S) AS SET FORTH HEREIN. IN NO EVENT SHALL NATURE’S GENERATOR BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF SUCH DAMAGES ARE A DIRECT RESULT OF NATURE’S GENERATOR NEGLIGENCE. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU ALSO MAY HAVE OTHER RIGHTS UNDER APPLICABLE LAW.
EXCEPT AS PROVIDED IN THIS WARRANTY, NATURE’S GENERATOR FURTHER DISCLAIMS ANY RESPONSIBILITIES FOR LOSSES, EXPENSES, INCONVENIENCES, OR SPECIAL, INDIRECT, SECONDARY, OR CONSEQUENTIAL DAMAGES ARISING FROM OWNERSHIP AND USE OF THE PRODUCTS. IF ANY WARRANTY TERM IS HELD TO BE ILLEGAL OR UNENFORCEABLE BY LAW, IT WILL BE EXCLUDED FROM THE WARRANTY WITH THE LEGALITY OF THE REMAINING TERMS NOT AFFECTED.
PLEASE NOTE: ALL CLAIMS MADE UNDER THIS LIMITED WARRANTY WILL BE GOVERNED BY THE TERMS SET FORTH IN THIS WARRANTY DOCUMENT AND THIS LIMITED WARRANTY SUPERCEDES ALL PREVIOUS NATURE’S GENERATOR WARRANTY STATEMENTS OR OTHER MARKETING MATERIALS.

9.7 How to Obtain Warranty Service?

Please call: 1-800-975-7909 Monday through Friday, 9:00AM to 5:00PM PST. You will be provided with a Return Merchandise Authorization (RMA) number and return instructions. Please include the RMA number prominently displayed on the shipping box and include your name, phone number and address with the product inside the box. Send product to:


NATURES GENERATOR INC
3233 Mission Oaks Blvd
Suite N
Camarillo, CA 93012
Contact Natures Generator Inc:
For customer service please call 1-800-975-7909
