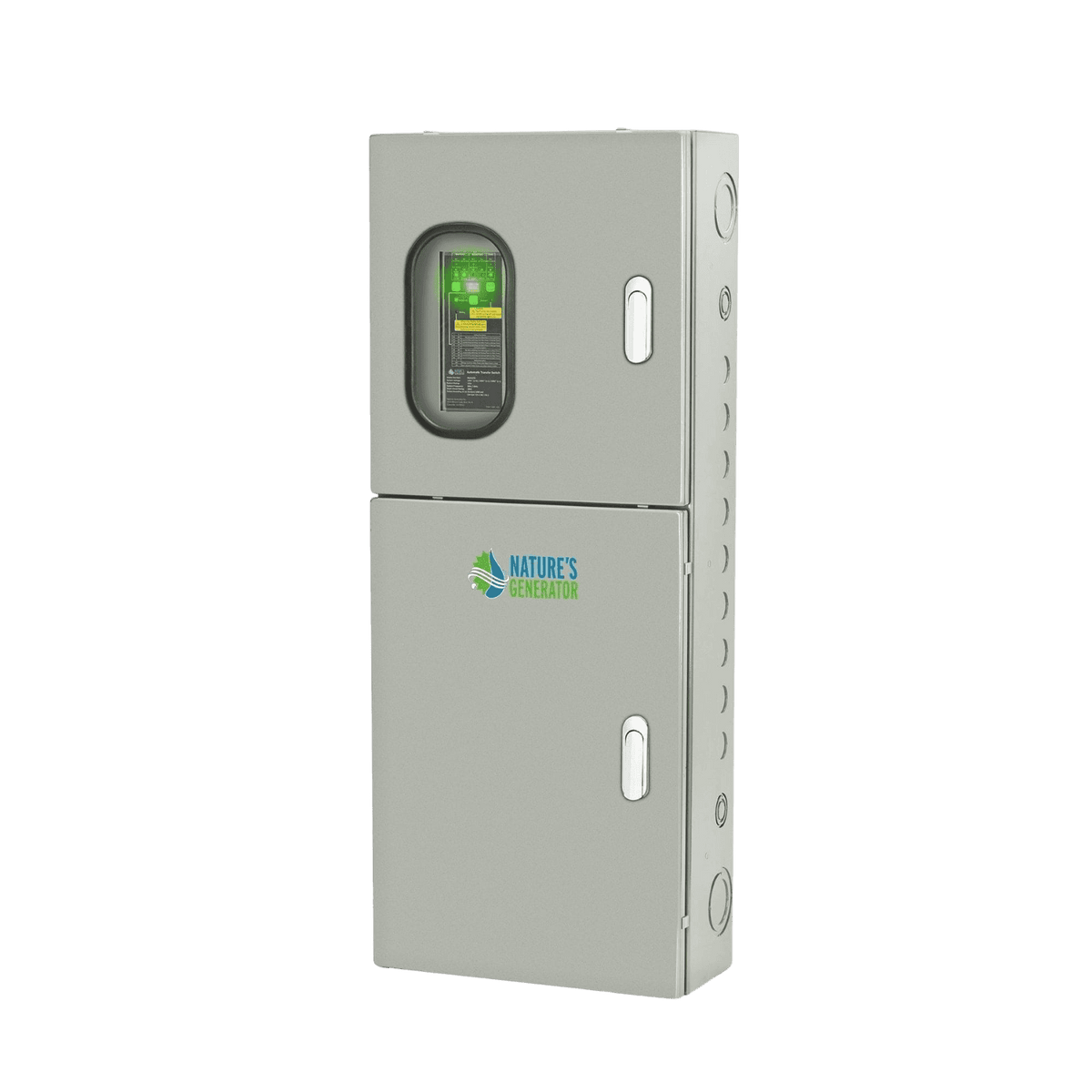

Nature's Generator 125A 24 Spaces 48 Circuits Automatic Transfer Switch

1. Locate your existing electrical panel board.
2. Decide the appropriate location to mount the automatic transfer switch. You might need to consider the layout of installation, the convenience and proximity to the electrical panel boards, the existing power source, the alternative power source and the circuits you want to power.
3. Mount the automatic transfer switch vertically to prevent any distortion.
4. If you prefer to flush mount the automatic transfer switch, purchase the flush mount kit through www.naturesgenerator.com or 800-975-7909 before the installation.
5. The enclosure is rated NEMA 3R. You can mount it either indoors or outdoors by following the appropriate building code.

Nature’s Generator automatic transfer switch offers 24 spaces that are suitable for one inch standard, tandem, GFCI, AFCI breakers from Simens/Murray, Easton, GE, Square D/Schneider and other listed suppliers.
1. Release the dead cover latches to remove the dead cover.
2. Remove the required breaker knockouts for installation.
3. Insert the tab on the breaker to the rail and push down the breaker into the bus bar.
4. Mark each circuit on the directory label accordingly.

Continue the installation by installing the circuit conductors.
1. Decide what knockouts need to be punched.
2. Install properly sized conductors into the automatic transfer switch through the punched knockouts.
3. Connect the hot conductors to the properly sized circuit breakers approved to use with this automatic transfer switch.
4. Terminate the neutral conductors at the neutral bars.
5. Terminate the grounding conductors at the grounding bars.
6. Size all conductors, conduits, raceways, junction boxes, if required to the applicable NEC (National Electric Code) or CEC (Canadian Electric Code) if in Canada.

Nature's Generator automatic transfer switch offers 4 isolation pads that isolate L1, L2 and N lines. Cut the pads to the appropriate sizes and insert them in between the lines.

1. Verify the installation has been properly performed as directed by this manual and meets all applicable laws and codes.
2. Verify proper operation of the automatic transfer switch as directed by this manual.
3. Apply necessary labels, marks and protections as needed. Educate the end user on proper operation, maintenance and service procedures.

Never operate the automatic transfer switch manually in the automatic mode!
A manual override handle is shipped with the automatic transfer switch. During emergency situations when the automatic transfer switch does not operate normally, you can use the manual override handle to operate the transfer switch.
1. Press the automatic/manual button to switch the automatic transfer switch to the manual mode. The manual light turns on.
2. Use the manual override handle to hold the manual override rod.
3. Press down the manual override handle to switch between the main power source and backup power source.

Natures Generator Inc. warrants to you, the original purchaser of this new product, that the product shall be free of defects in the original manufacture of the material or workmanship for a period of one (1) year from the original date of your purchase of the product (“Warranty Period”). This product must be purchased from an authorized dealer and packaged with this warranty statement. This warranty does not cover a refurbished product.

During the Warranty Period, if the original manufacture of the material or workmanship of the product is determined to be defective by an authorized dealer, Natures Generator, Inc. will (at its sole option):
(1) repair the product with new or rebuilt parts;
or
(2) replace the product at no charge with new or rebuilt comparable products or
parts.
Products and parts replaced under this warranty become the property of Nature's Generator and are not returned to you. If service of products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the product. How to Obtain Warranty Service? Please call 1-800-975-7909 Monday through Friday, 9:00AM to 5:00PM PST. You will be provided with a Return Merchandise Authorization (RMA) number and return instructions.

Send product to:
Natures Generator Inc
3233 Mission Oaks Blvd. Ste N
Camarillo, CA 93012
Please include the RMA number prominently displayed on the shipping box and include your name, phone number and address with the product inside the box.

This warranty is valid only to the original purchaser of the product in United States.

This warranty does not cover:
• Cosmetic damage
• Damage due to acts of God, such as lightning strikes
• Accident
• Misuse
• Abuse
• Negligence
• Commercial use
• Modification of any part of the product
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage supply
• Attempted repair by anyone other than a facility authorized by Natures Generator Inc. to service
• the product
• Products sold as is or with all faults
• Consumables, such as batteries
• Products where the factory applied serial number has been altered or removed

REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY. NATURES GENERATOR INC. SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. NATURES GENERATOR, INC. PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Natures Generator Inc
3233 Mission Oaks Blvd. Ste N
Camarillo, CA 93012
For customer service please call 1-800-975-7909
