Materials
$1,000 – $3,000+
NEC-Compliant Load Management
Add a high-demand load, without upgrading your electrical panel.
Nature's Generator's Energy Management System monitors your total electrical demand and intelligently manages high-demand 240V loads, so you can add an EV charger, air conditioner, electric water heater, pool heater or fast-charge a solar generator or energy storage system on your existing electrical service without a $6,000+ electrical panel upgrade.
- 40A/60A Load Capacities
- 120V/240V Service Compatible
- NEC Compliant
Live panel reading — 125A service
Monitoring
Without energy management system
110A / 125A
With energy management system
40A / 125A
Load automatically shed at threshold – managed circuit disconnects before your service is exceeded, then restores itself.
The Problem
Want to Add an EV Charger or High-Demand Appliance? Your Existing Electrical Service May Not Have the Capacity.
Adding an EV charger, air conditioner, electric water heater, pool heater, or fast-charging a solar generator or energy storage system can significantly increase your home's electrical demand. A load calculation may show that your existing 100A or 125A service doesn't have enough available capacity.
The traditional solution may be an upgrade to 200A service, adding significant cost, permits, utility coordination, and installation time.
Electrical panel without load management
Calculated demand
on 125A service
There is a code-compliant way to avoid the upgrade, that's what an Energy Management System does.
Example home
2,500 sq ft
Existing service
125A
+ EV charger load
+48A (60A Branch Breaker)
Result
Exceeds capacity
Traditional fix
Upgrade to 200A service
Upgrading can cost more than you think.
It's not just the equipment. It's everything that comes with it.
Labor
$1,000 – $3,000+
Permits & Inspections
$300 – $1,000+
Service Downtime & Disruption
$1,000 – $3,000+
Other Hidden Costs
Concrete / Drywall / Landscaping / etc.
$300 – $2,000+
Plus scheduling time and utility coordination
The Solution
An NEC-approved way to add power without adding capacity.
An Energy Management System is an NEC-approved device that monitors, controls, and — when needed — temporarily limits electrical loads so they don't all run at once.
Key Principle
Approved EMS systems reduce calculated demand by automatically preventing high-demand loads from running at the same time, keeping your home within its existing service capacity.
- NEC Compliant — code-approved solution
- Cost Effective — a fraction of an upgrade
- Fully Automatic — no user intervention
Process
How Nature's Generator EMS works
Four steps, running continuously, with no action required from you.
-
01
Continuous Monitoring
Dual current monitors track total service demand in real time across both 120V legs, amperage, voltage, and calculated wattage.
-
02
Intelligent Control
As demand approaches your configured threshold (typically 80% of service capacity), the EMS prepares to act.
-
03
Load Shedding
The managed load, EV charger, heat pump, etc., is temporarily disconnected, keeping total demand in range.
-
04
Automatic Restoration
Once demand drops, power to the managed load is restored automatically. No resets, no app, no user action.
The Math
Skip the upgrade. Keep the capability.
The financial case, side by side.
Traditional service upgrade
$6,000
Existing 125A
New 200A Required
Nature's Generator EMS
A fraction of the cost
Existing 125A
Stay within Service
Traditional Upgrade
Nature's Generator EMS
Cost
Traditional Upgrade
$6,000
Nature's Generator EMS
Starting $399.99
Timeline
Traditional Upgrade
Weeks, permits + scheduling
Nature's Generator EMS
Installed in a day by a licensed electrician
Permits
Traditional Upgrade
Required, with inspection delays
Nature's Generator EMS
Standard electrical permit only
Disruption
Traditional Upgrade
Panel replacement, possible outage
Nature's Generator EMS
Installed alongside existing panel
Outcome
Traditional Upgrade
New 200A service
Nature's Generator EMS
Add high-demand loads now, NEC-compliant

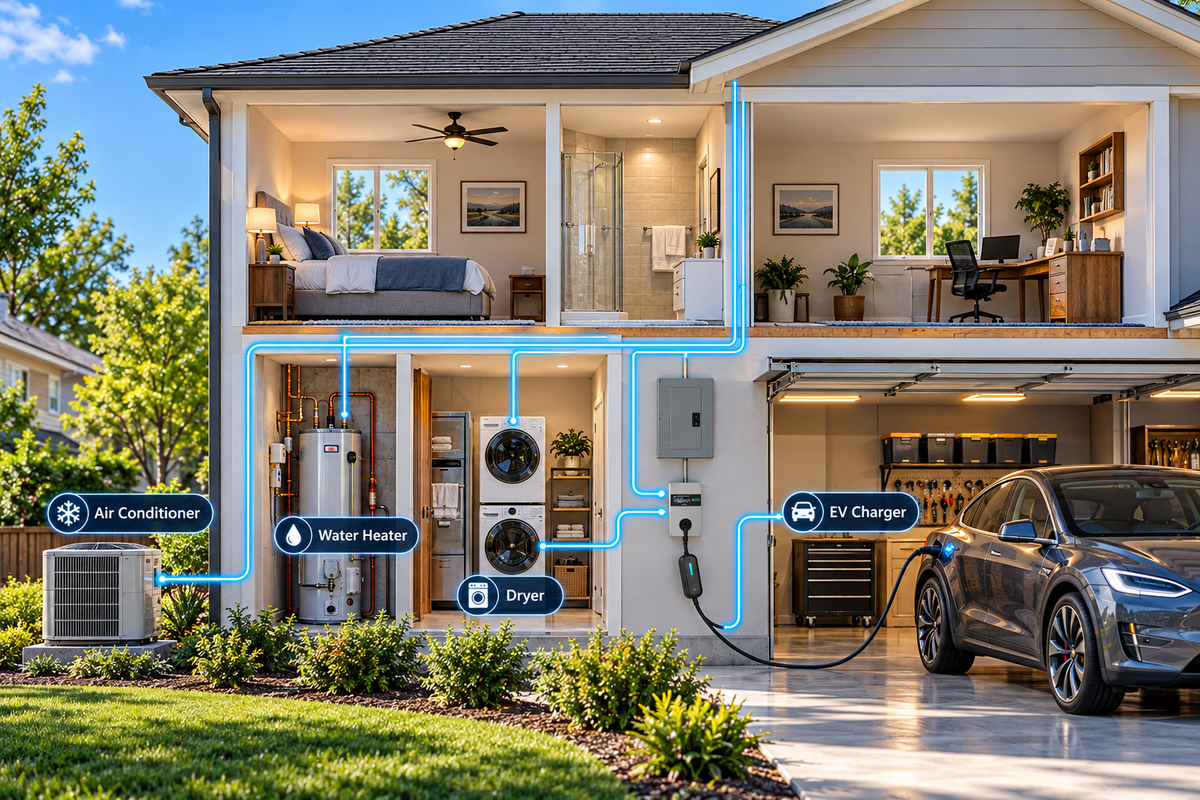

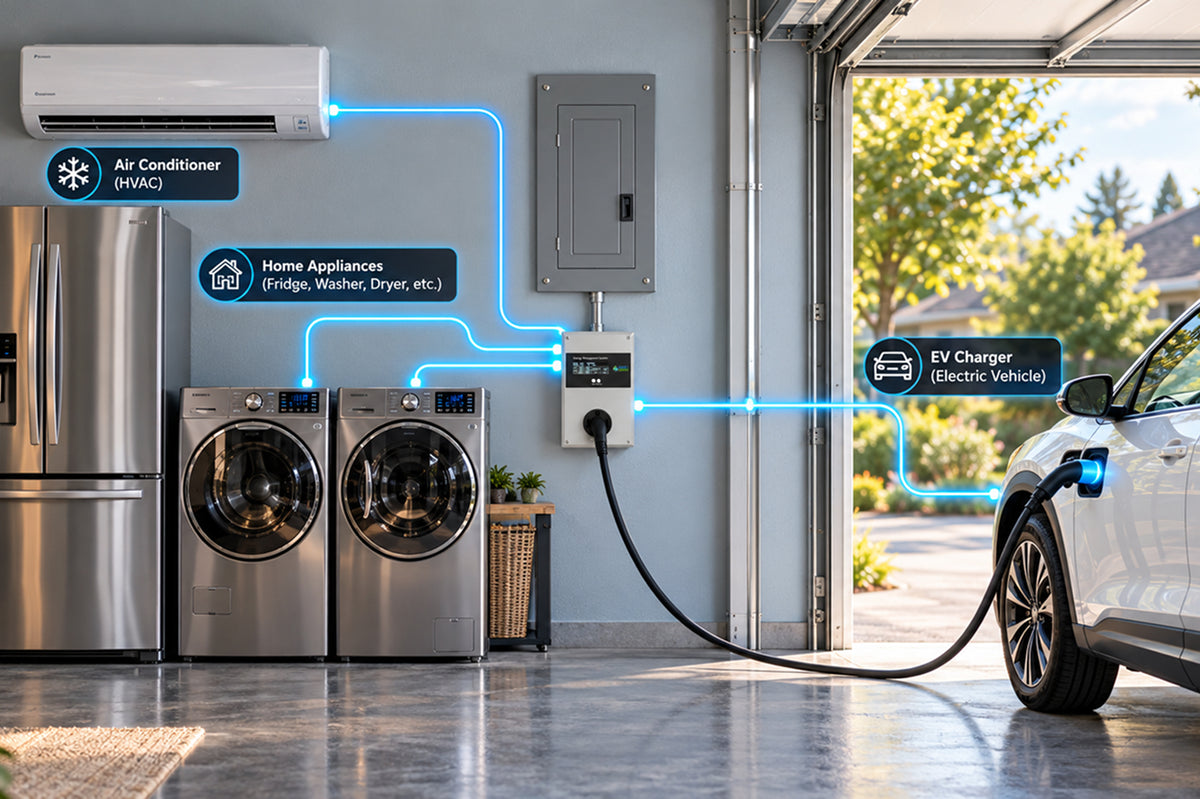

Applications
Perfect for high-demand appliances
Maximize your existing electrical capacity without costly upgrades.
EV Chargers
Level 2 home charging stations (40–60A @ 240V)
48A calculated (40A × 125% continuous)
Air Conditioner
Heating and cooling systems
20–60A depending on size
Electric Water Heater
High-power water pumping systems
18–30A @ 240V
Pool Heater
Electric pool and spa heating systems
24–60A @ 240V
Fast Charge – Solar Generator/Storage
Rapid charging for backup power systems
30–50A @ 240V
Large Appliances
Electric ranges, dryers, and other major circuits
30–50A @ 240V
Control & Visibility
See it. Control it.
Track live amperage, voltage, and wattage directly on the built-in LCD display, real-time insight into exactly how your system is managing power.
-
Main Current Rating
Configured to match your home's service capacity
-
Usage Ratio Threshold
Customizable trigger point for load management
-
Controlled Line Amperage
Adjustable limits for managed circuits
Current (amps)
96.4 A
Voltage
241 V
Power (watts)
23,232 W
Live reading — built-in LCD display
Protection
Built-in safety protection
Every safety feature is designed with one goal: protecting your home, family, and connected appliances.
Overload Prevention
Intelligent logic monitors power levels and acts before dangerous overload conditions occur.
- Continuous monitoring
- Proactive protection
High-Voltage Protection
Built-in awareness of voltage conditions helps protect sensitive electronics and appliances.
- Voltage monitoring
- Equipment protection
Grounding Support
Proper grounding integration ensures electrical safety standards are maintained throughout operation.
- Safety compliance
- Code adherence
Documents
- NG's Energy Management System View Manual
- NG's EMS Installation Guide Download
- US & Canada Safety Certified (ANSI/CAL/UL 0000) Download
Certification
Independently tested. Certified to national safety standards.
The EMS carries the cETLus mark, confirming independent, third-party testing against the exact standards written for this category of equipment, for both the U.S. and Canada.
Certified by Intertek
Intertek is an independent, OSHA-recognized Nationally Recognized Testing Laboratory (NRTL), the same class of authority as UL. The cETLus mark means the EMS was independently tested and listed for use in both the United States and Canada.
- Independent third-party testing
- OSHA-recognized NRTL
UL 916 / CAN / CSA-C22.2 No. 916
The specific safety standard written for Energy Management Equipment – devices built to monitor and control electrical loads. This confirms the EMS is built to the requirements set for its exact product category, not a general-purpose standard.
- Energy Management Equipment
- U.S. & Canada
UL 60730-1 / CSA E60730-1
Covers the general safety requirements for automatic electrical controls – the part of the EMS that disconnects and restores a managed load without anyone touching it. This is the standard that governs the "automatic" in automatic load shedding.
- Automatic Electrical Controls
- U.S. & Canada
Compatibility
Built for standard 120V/240V split-phase service
The Energy Management System monitors both legs of your home's standard 120V/240V split-phase service, the setup found in virtually every U.S. home, with no special wiring changes needed. It is not compatible with 120V-only systems.
-
Works with your existing 120V/240V split-phase service
-
No special wiring changes required
-
Works seamlessly with existing solar installations
Monitors total household consumption regardless of power source
Supported configurations
- 120V/240V Split-Phase Service
- 120V/240V Split-Phase + Solar
Product
Select the right model for your installation
One distinguishing question: is your load plug-in, or hard-wired?

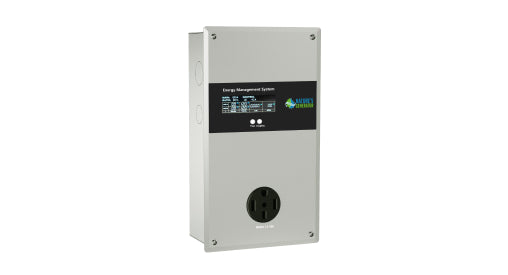

Plug-in loads
40A Model
For receptacle-connected appliances
Managed Load Capacity
40 Amperes
Connection Type
Receptacle Circuits
Voltage Support
120V / 240V
Typical Use
EV mobile chargers, NEMA 14-50R
Display / Monitors
LCD, Dual Monitor

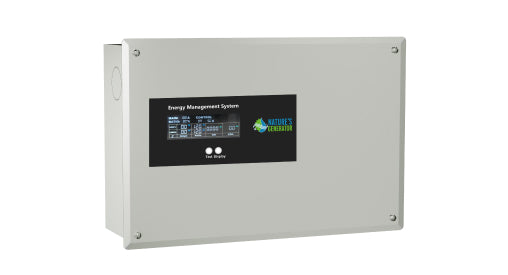

Hard-wired loads
60A Model
For direct-wired installations
Managed Load Capacity
60 Amperes
Connection Type
Hard-Wired
Voltage Support
120V / 240V
Typical Use
EV stations, heat pumps, well pumps
Display / Monitors
LCD, Dual Monitor
Why Nature's Generator
Experience the difference professional energy management makes
Eliminate service upgrades
Add EV chargers and high-demand loads without the $3,000–$8,000+ cost of panel upgrades, utility fees, and permits.
Peace of mind
Sleep better knowing your home is protected 24/7 with intelligent monitoring and automatic protection.
Energy insights
Understand your consumption patterns and make informed decisions about energy usage.
Extend equipment life
Reduce stress on electrical components and connected devices for longer-lasting performance.
Zero maintenance
Once installed, the system works automatically, no ongoing maintenance required.
Professional support
Backed by Nature's Generator with expert installation and customer support.
Build Quality
Engineered for quality. Built to install cleanly.
Every EMS unit uses professional-grade components and is designed to integrate into your existing panel, no custom fabrication, no proprietary tools.
Built to last
- Durable, professional-grade components
- NEMA-rated enclosure for reliability
- Built for long-term operation
- Compliance-focused design
Straightforward to install
- Mounts alongside your existing panel, no service upgrade required
- Standard electrical connections, no proprietary tools
- Simple setup: current rating, usage threshold, controlled load
- Typically completed in a single visit
As with any equipment connected to your main electrical panel, installation should be performed by a qualified electrician in accordance with local code.
Real Homeowners
What our customers say
"Since installing the 40A model, we haven't had a single breaker trip even during peak usage. The peace of mind is worth every penny."
Michael R.
"The real-time monitoring gives us insights we never had before. We've actually reduced our energy consumption by understanding our usage patterns."
Sarah T.
"Professional installation was quick and the electrician was impressed with the build quality. It's been running flawlessly for 6 months."
James K.
FAQ
Frequently Asked Questions
Everything you need to know
Which model should I choose: 40A or 60A?
Choose the 40A model for plug-in loads on receptacle circuits, such as EV mobile chargers and NEMA 14-50R outlets. Choose the 60A model for hard-wired loads such as EV stations, heat pumps, and well pumps.
Is this NEC compliant?
Yes. The Energy Management System is an NEC-approved device. It carries the cETLus mark and is tested to UL 916 / CSA-C22.2 No. 916 for energy management equipment and UL 60730-1 / CSA E60730-1 for automatic electrical controls.
Does this require professional installation?
Yes. Installation should be performed by a qualified electrician in accordance with local code. It mounts alongside your existing panel, uses standard electrical connections, and is typically completed in a single visit.
How does load shedding work?
The EMS monitors total demand across both 120V legs. When demand approaches your configured threshold, it temporarily disconnects the managed load so the service stays within capacity, then restores power automatically once demand drops.
Will I notice when loads are disconnected?
The managed circuit is disconnected only while total demand is near your service limit, then restored automatically. No reset, app, or user action is required.
What maintenance is required?
Once installed, the system works automatically. No ongoing maintenance is required.
Is this compatible with solar systems?
Yes. It works with existing solar installations and monitors total household consumption regardless of power source. It is built for standard 120V/240V split-phase service, including split-phase plus solar. It is not compatible with 120V-only systems.
Ready when you are
Ready to add high-demand loads — without the upgrade?
Join thousands of homeowners who trust Nature's Generator Energy Management System for intelligent power protection.
- 2+ Yrs Warranty Coverage
- 24/7 Customer Support
- 100% Satisfaction Guaranteed
