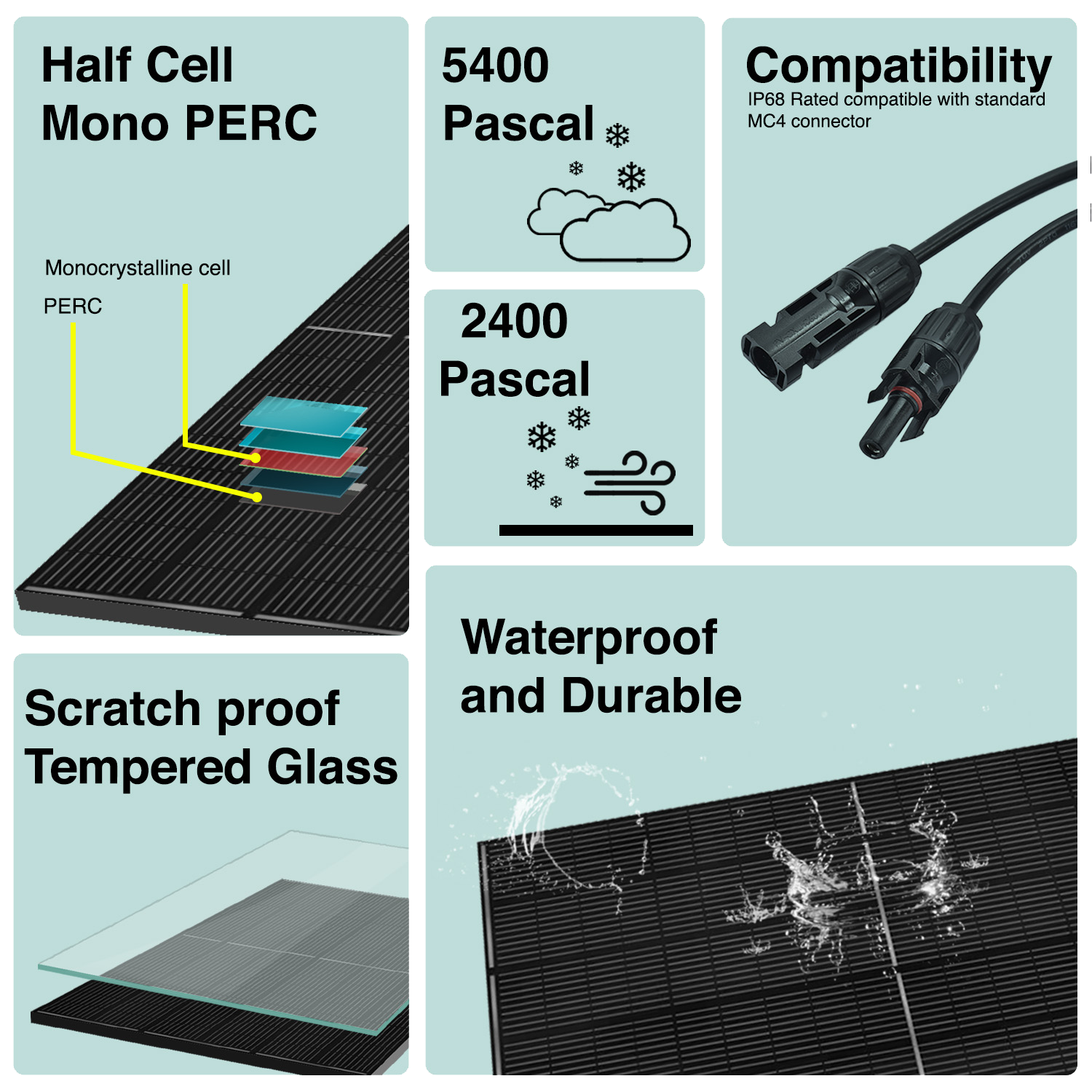

Features
Explore the advanced panel technologies designed to deliver high efficiency, reliable performance, and consistent solar power for residential and off-grid systems.

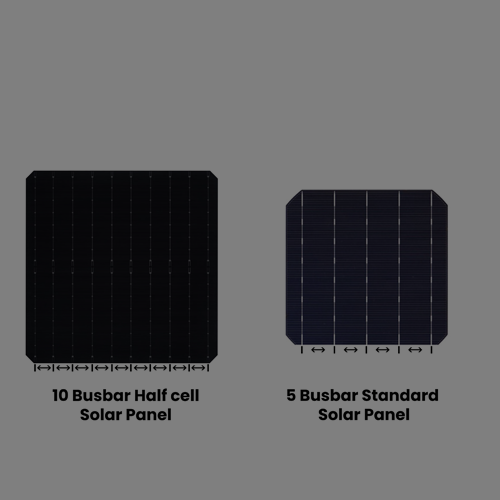

10 Busbar Half-Cell Design
Improves current collection and reduces internal resistance for higher efficiency and more stable power output.

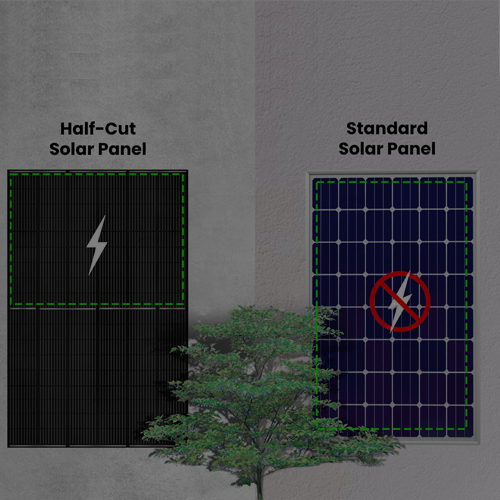

Half-Cut Cell Technology
Minimizes power loss and heat generation, delivering better performance in partial shading and high-temperature conditions.

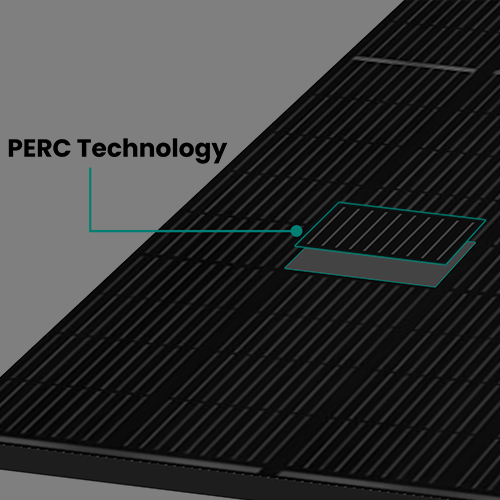

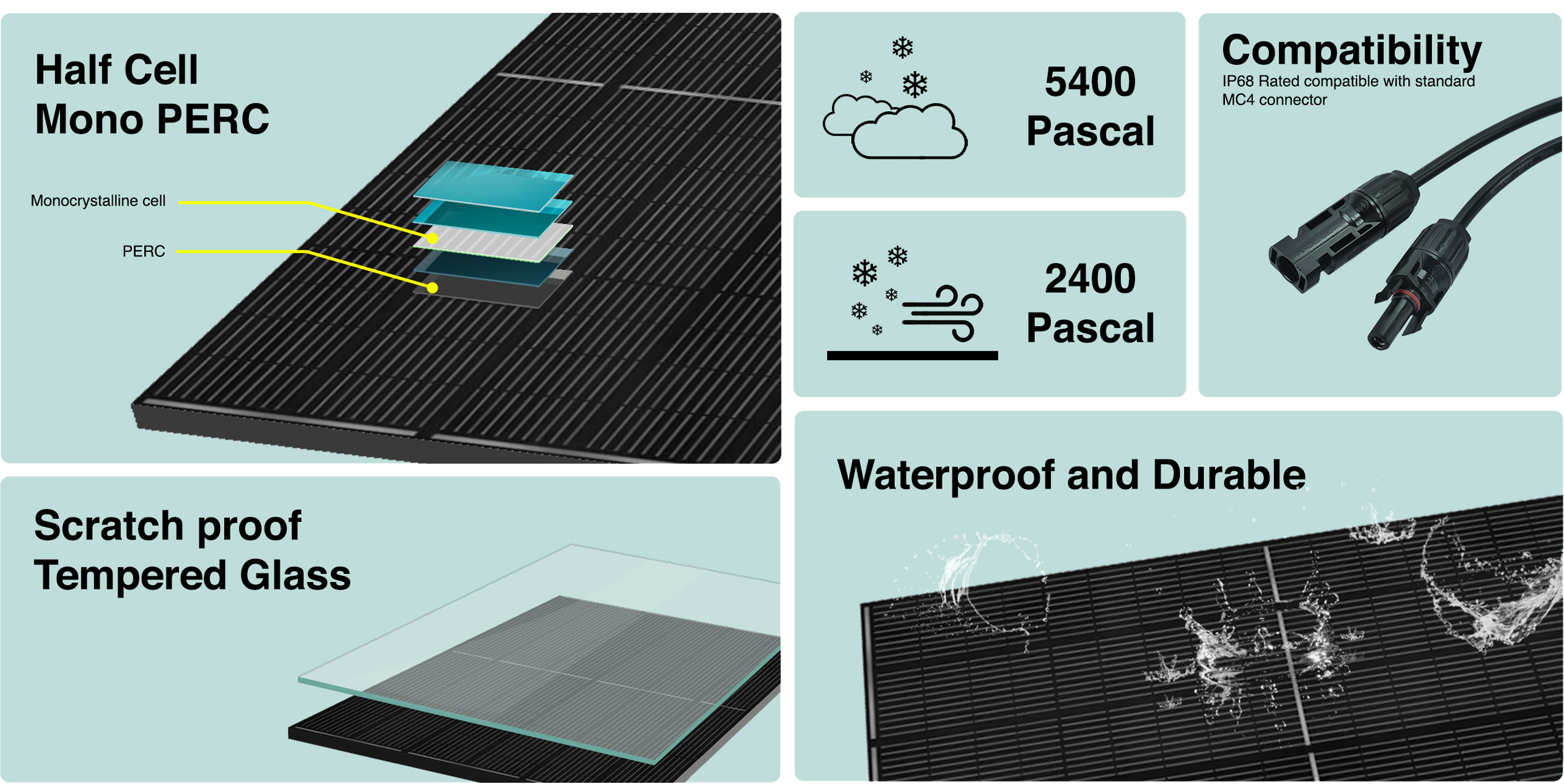

PERC Technology
Enhances light absorption and energy conversion, allowing the panel to produce more power throughout the day.
20.97% Module Efficiency STC
Achieves high energy conversion, delivering greater power output and improved performance per square meter.
Built for Multiple Mounting Setups
Supports versatile installation options, making it simple to integrate into residential or off-grid solar systems.

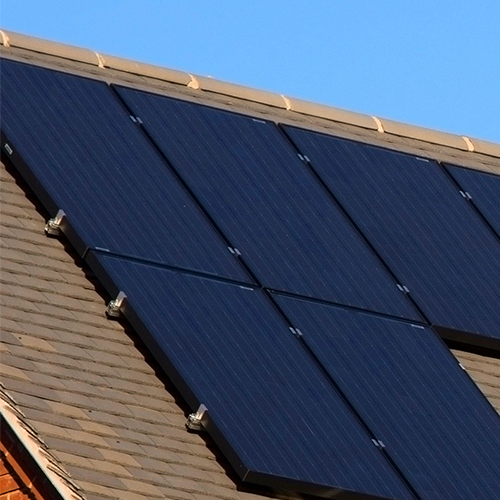

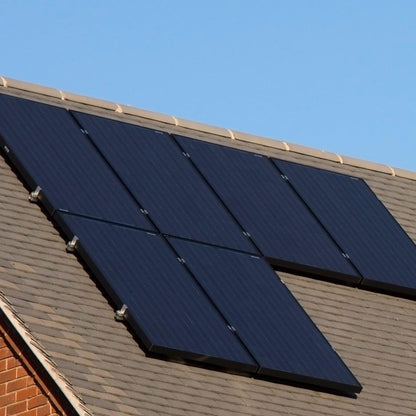

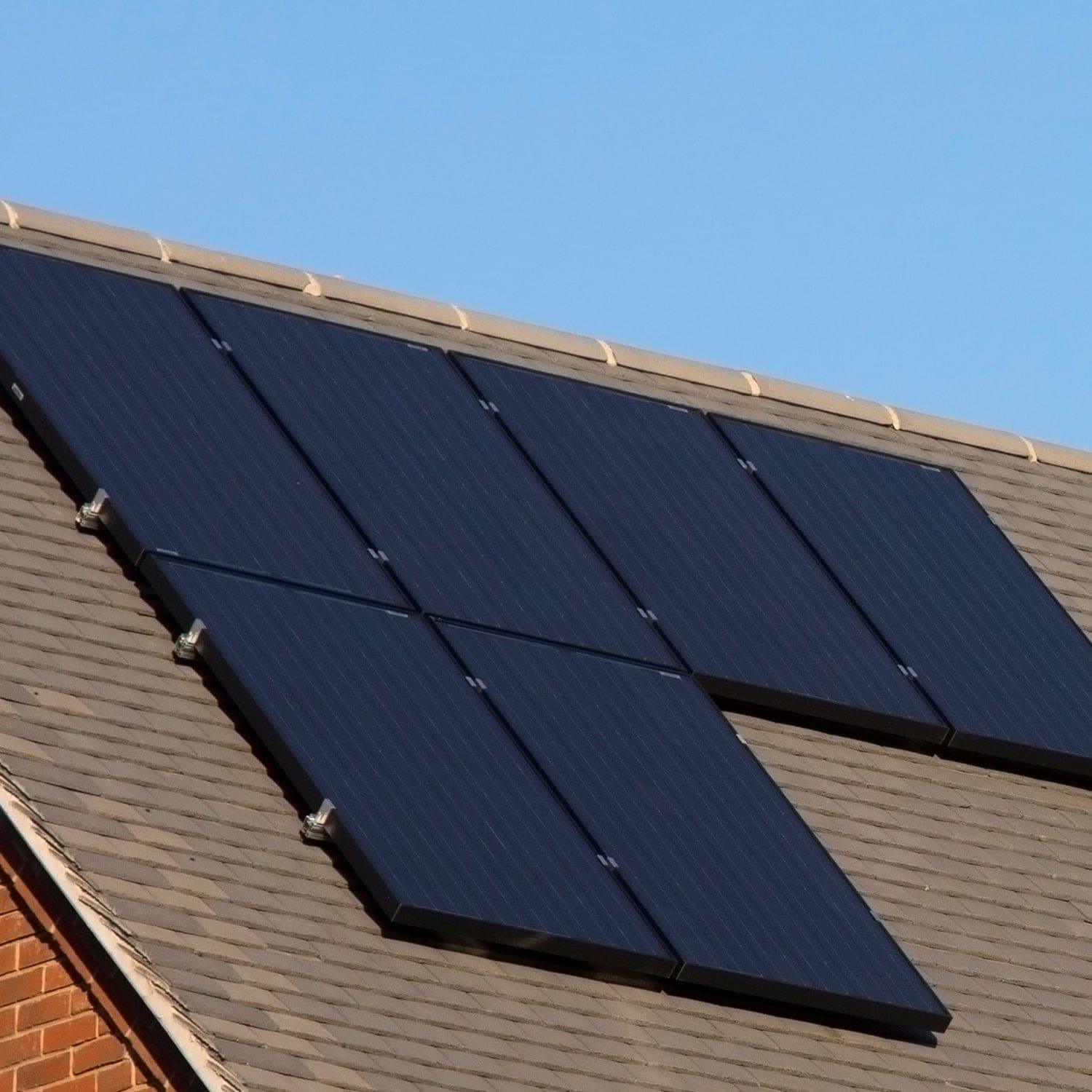

Roof Mounting

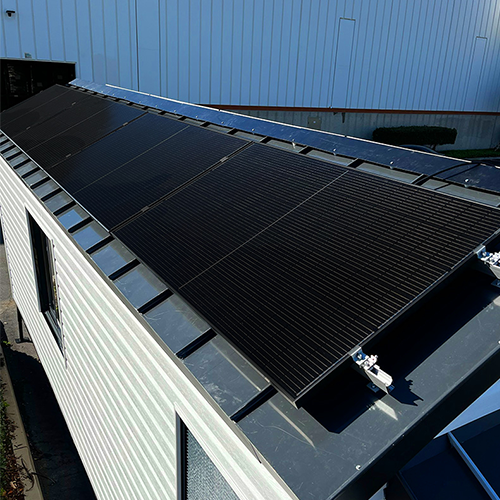

Tiny Home & RV

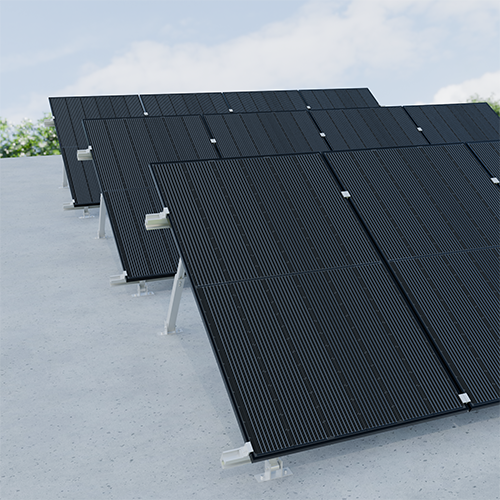

Ground & Concrete Mounting

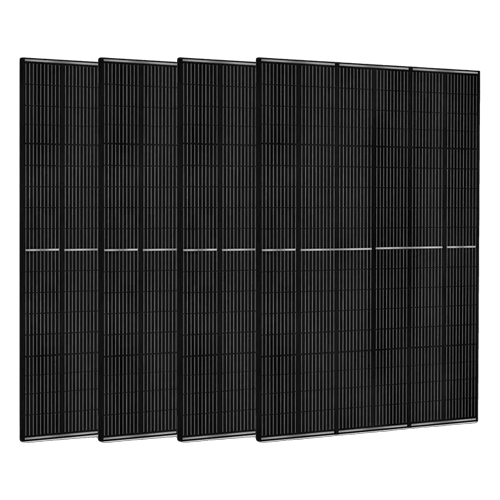

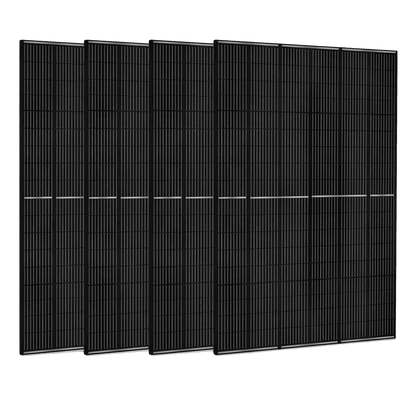

410W Solar Panel Highlights
Built with advanced solar technology to support residential and off-grid energy systems.
Tech Specs
A closer look at output, efficiency, dimensions, and compatibility details.
Power Rating
Maximum Power (Pmax)
410W
Maximum Power Voltage (Vmp)
31.35
Maximum Power Current (Imp)
13.08
Open-circuit Voltage (Voc)
37.12
Short-circuit Current (Isc)
13.96
Module Efficiency STC (%)
20.97%
Dimensions & Characteristics
1755*1038*30mm(69.09*40.87*1.18 inch)
Cell Type
Mono PERC 182×91mm
No.of Half-cells
108 (6×18)
Frame
Anodized Aluminum Alloy
Weight
20.5 kg (45.19 lbs)
Front Glass
3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Operation Temperature
-40℃~+85℃ (-40°F ~+185°F )
Junction Box
IP68 Rated, connector compatible with MC4
Output Cables
1200mm (47.24 inch)
Fire rating
UL: Type 1, IEC: Class C
What's In The Box?

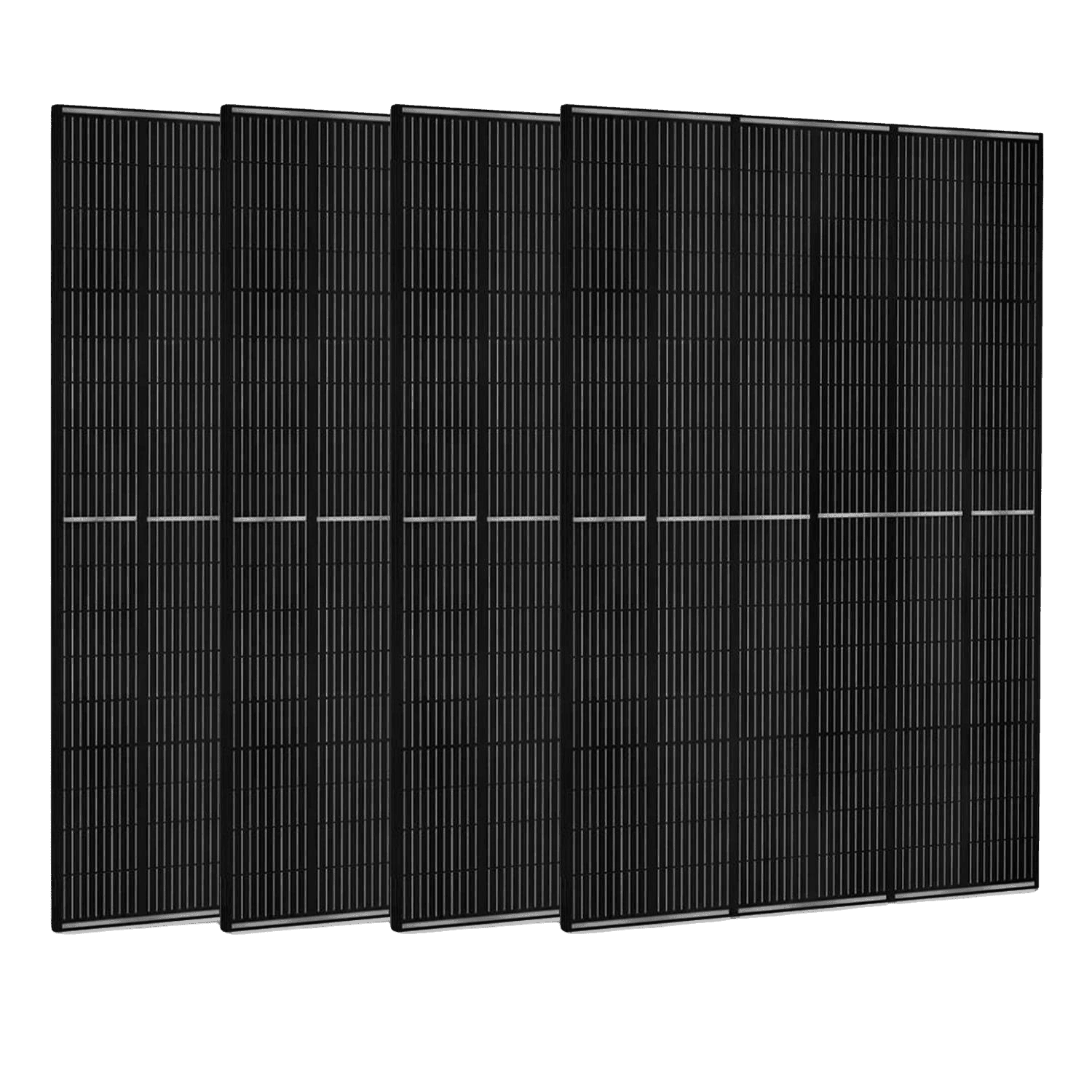

410W Rigid Solar Panel
410W Rigid Solar Panel Installation Guide
